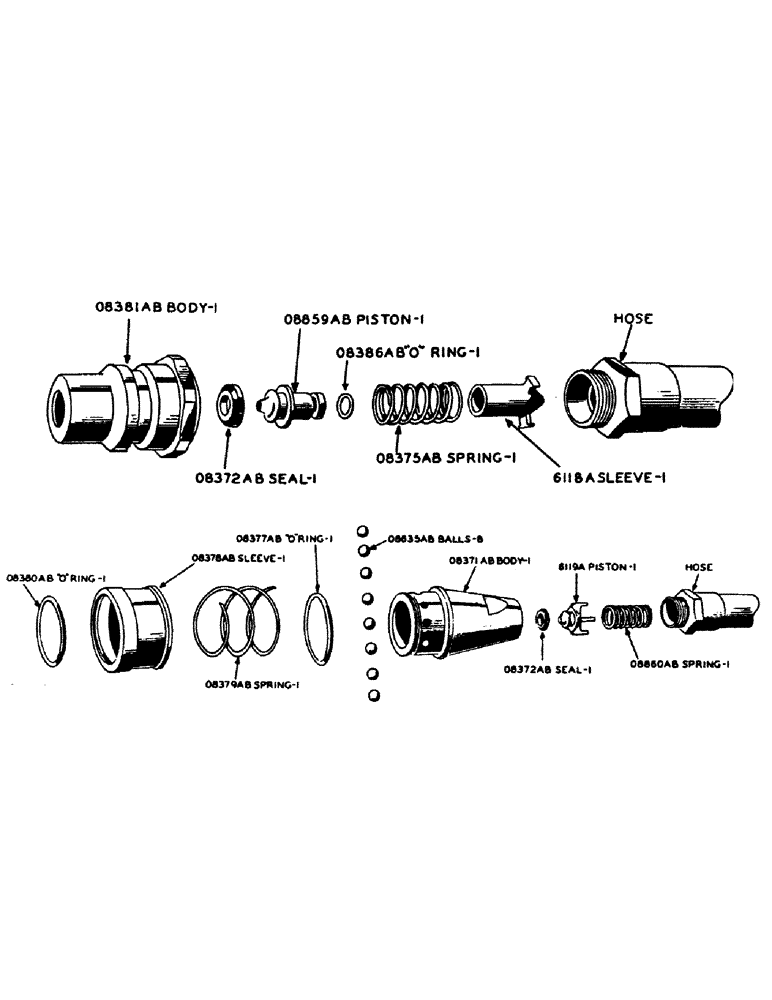

Запчасти Case IH 100 (12) - 4025AA BREAK-AWAY SELF SEALING COUPLING PLUG

6118A

X

SLEEVE - break-away coupling plug piston

1шт.

O8372AB

X

SEAL - break-away coupling piston

1шт.

O8375AB

X

SPRING - break-away coupling piston

1шт.

O8381AB

X

BODY - male, break-away coupling plug

1шт.

O8386AB

X

"O" RING - break-away coupling plug piston sleeve

1шт.

O8859AB

X

PISTON - break-away coupling plug

1шт.

4025AA

X

PLUG - break-away self sealing coupler (Consists of above items)

2шт.

O8387AB

X

PLUG - adapter, connects break-away coupling plug to mounted cylinder

2шт.

6119A

X

PISTON - break-away coupling socket

1шт.

O8371AB

BODY - female, break-away coupling socket

1шт.

O8372AB

X

SEAL - break-away coupling piston

1шт.

O8377AB

X

"O" RING - break-away coupling socket body

1шт.

O8378AB

X

SLEEVE - break-away coupling socket body ball retaining

1шт.

O8379AB

X

SPRING - coupling socket body bolt retaining sleeve

1шт.

O8380AB

X

SNAP RING - rubber, coupling socket

1шт.

O8635AB

X

BALL - break-away coupling socket lining

8шт.

08860AB

SPRING - break-away coupling socket piston

1шт.

4026AA

X

SOCKET - break-away self sealing coupling (Consists of above items)

2шт.
