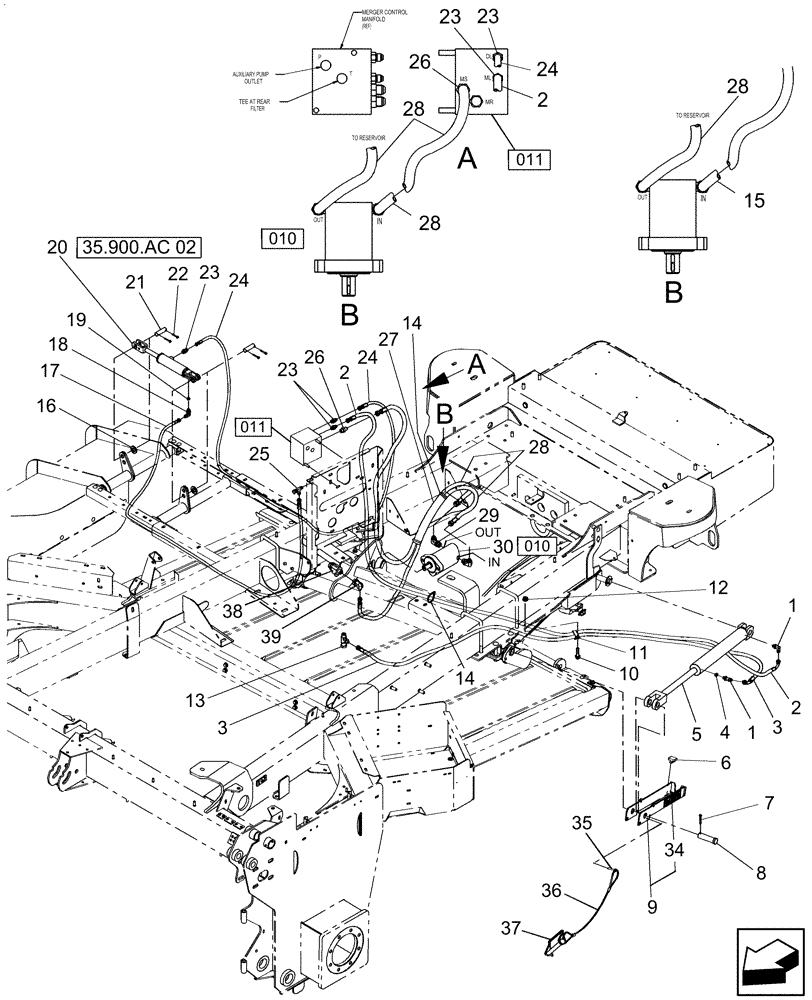

Запчасти Case IH DOUBLE WINDROW (35.905.AA) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

2

87585801

HOSE ASSY.

Merger Lift Cylinder Piston End To Merger Valve Port (ML)

1шт.

3

87585805

HOSE ASSY.

Merger Lift Cylinder Rod End To Charge Pump Outlet Tee Port (D)

1шт.

4

270191

ORIFICE

.0625 Hex

1шт.

5

87678179

CYLINDER,Double Acting, 28.7mm Rod, 304.8mm Stroke

Hydraulic, Lift Arm, 2.5" x 12" x 1.13"

1шт.

6

216328

BUMPER

Rubber

1шт.

7

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

8

511935

PIN,25.4mm OD x 98.43mm L

Clevis

1шт.

9

87664319

CHANNEL

Incl 34

1шт.

10

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

CLOSED 25.4MM 5/16" BOLT

1шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

13

87446825

TEE

Connect to Propel Charge Pump Outlet Port (D)

1шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

15

87585813

HYDRAULIC HOSE,12.70 mm ID x 1473.00 mm, SAE 100R16

Hydraulic Motor To Merger Valve Port MS

1шт.

16

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

17

87585700

HOSE ASSY.

Side Deflector Cylinder Piston Port To Main Manifold Port Tee (P3)

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

19

705914

ORIFICE

9/16-18 Thread, .040 Orifice

2шт.

20

84246073

CYLINDER,Double Acting, 19.05mm Rod, 101.6mm Stroke

Hydraulic, Side Deflector

1шт.

21

86634564

PIN

Round, 19MM OD X 62 MM

2шт.

22

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

4шт.

23

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

24

87585812

HYDRAULIC HOSE,6.35 mm ID x 2057.00 mm, SAE 100R16

Side Deflector Cylinder Rod Port To Merger Valve Port (DL)

1шт.

25

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

Connect to Main Manifold Port (P3)

1шт.

26

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

37FL X ORB -08

1шт.

27

87046143

SLEEVE

Nylon Braided Hose Cover

1шт.

28

87021283

HYDRAULIC HOSE,0.50" ID x 71.00", SAE 100R17

HOSE ASSY.

1шт.

29

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

2шт.

30

87499864

HYDRAULIC MOTOR

1шт.

31

87042713

SEAL KIT

Services Hydraulic Motor 87499864

1шт.

34

87651623

DECAL

DANGER

1шт.

35

80756

COTTER PIN,1/8" x 3/4"

1шт.

36

9847357

CABLE

Lanyard, 5.5"

1шт.

37

86591354

LOCK PIN

9.525mm W/ Wire Closure

1шт.

38

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

1шт.

39

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.
