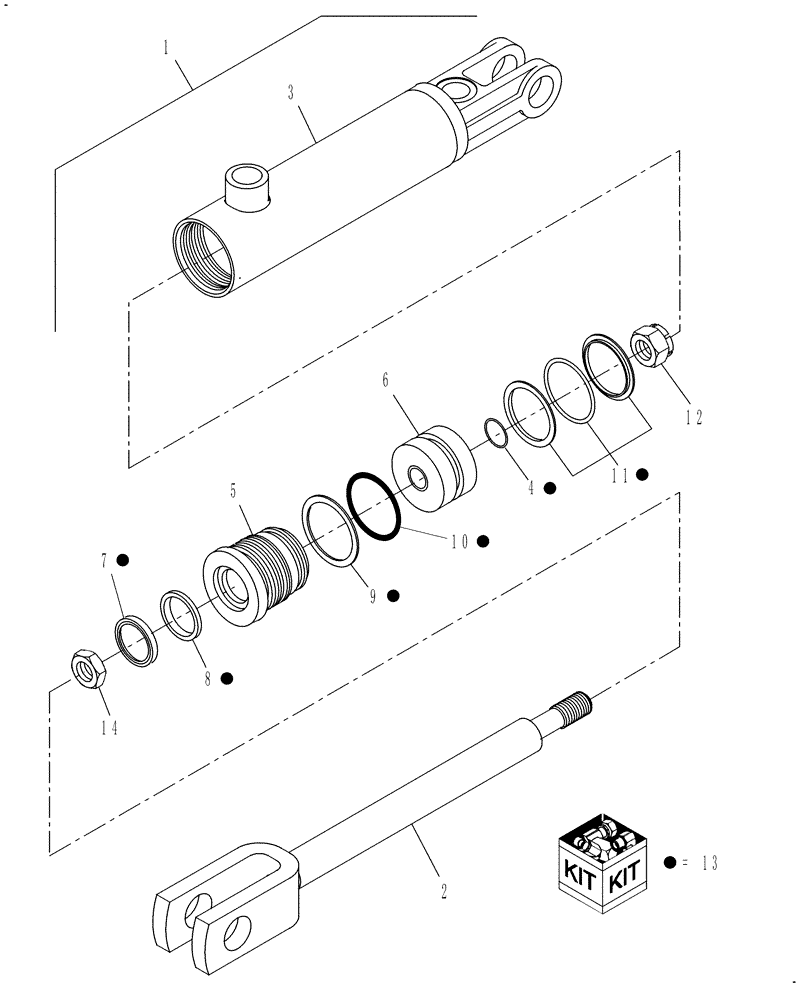

Запчасти Case IH DOUBLE WINDROW (35.900.AC[02]) - HYDRAULIC CYLINDER, DEFLECTOR (35) - HYDRAULIC SYSTEMS

1

84246073

CYLINDER,Double Acting, 19.05mm Rod, 101.6mm Stroke

Hydraulic, Side Deflector

1шт.

2

87029768

SEAL KIT

Services Side Deflector Cylinder 87246073 (1), Incl 4, 7,8,9,10,11

1шт.

3

NSS

NOT SOLD SEPARAT

Cylinder Tube, Order Complete Cylinder 84246073 (1)

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder Head, Gland, Order Complete Cylinder 84246073 (1)

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Order Complete Cylinder 84246073 (1)

1шт.

7

514100

OIL SEAL

Wiper, Incl In Kit 87029768 (2)

1шт.

8

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

Rod, .75", Incl In Kit 87029768 (2)

1шт.

9

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Back-Up, 1.266" ID x .043" Thk, Incl In Kit 87029768 (2)

1шт.

10

14463681

O-RING,31.34mm ID x 3.53" Width

Incl In Kit 87029768 (2)

1шт.

11

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

3 Piece Piston Seal, Incl In Kit 87029768 (2)

1шт.

12

87333768

NUT,1/2" - 20

1/2-20 GR C ZND

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Rod, Order Complete Cylinder 84246073 (1)

1шт.

14

87309

JAM NUT,Jam, 1/2"-20, G2

1шт.
