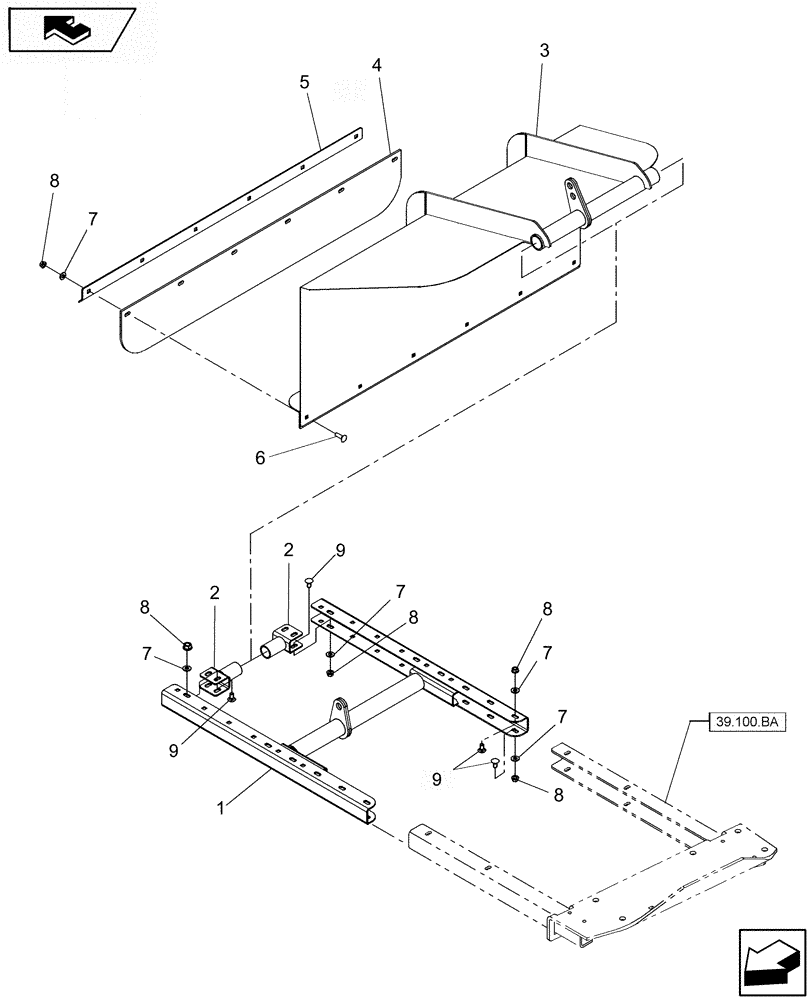

Запчасти Case IH DOUBLE WINDROW (88.240.AA) - DEFLECTOR, CROP DIVIDER (88) - ACCESSORIES

1

87576193

SUPPORT

Dark Gray

1шт.

2

87576196

PIVOT

Deflector

2шт.

3

87678164

BAFFLE

Deflector

1шт.

4

87677296

BAFFLE

Lower Deflector, Wear

1шт.

5

87677295

ANGLE

Securing Strap

1шт.

6

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

22шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

16шт.
