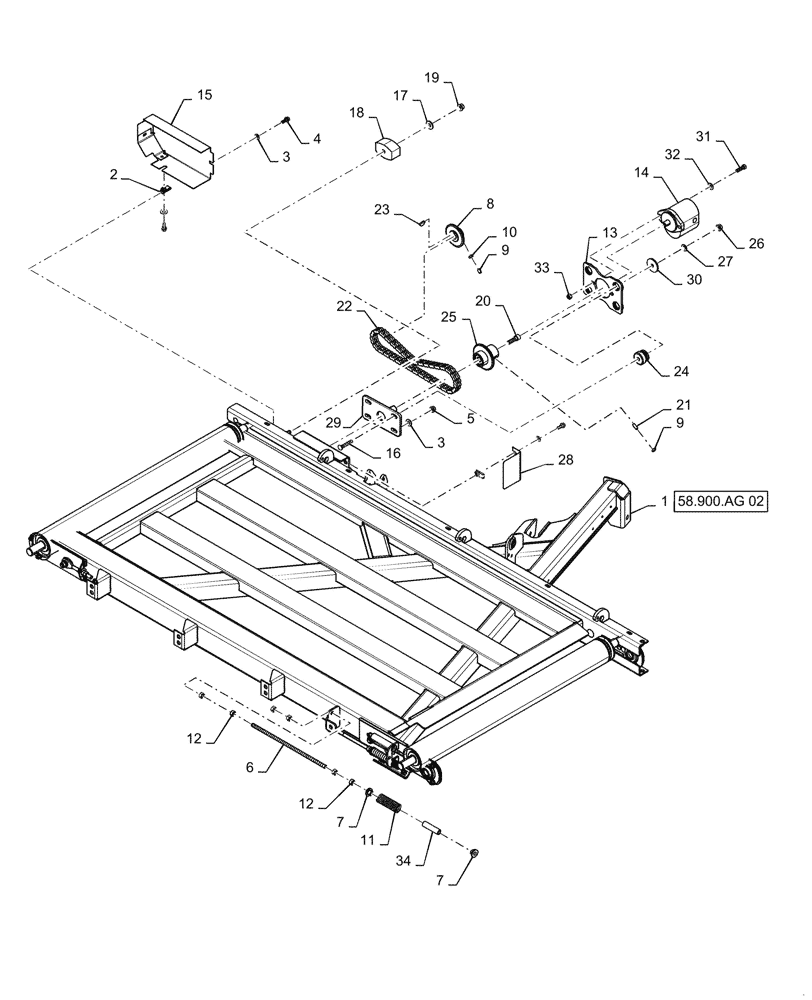

Запчасти Case IH DOUBLE WINDROW (58.900.AG) - TENSIONER, CHAIN (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

Deck, Assy

1шт.

2

86539811

SPRING NUT

3шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

6

87537055

THREADED ROD

4шт.

7

87689253

INSERT

Insert

8шт.

8

87488685

SPROCKET

17T

1шт.

9

86509499

JAM NUT,3/8"-16, G2

4шт.

10

80424

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

2шт.

11

795770

SPRING

4шт.

12

280431

NUT,1/2"-13, G5

24шт.

13

84132305

ENGINE MOUNT

1шт.

14

87499864

HYDRAULIC MOTOR

1шт.

15

87687556

SHIELD

1шт.

16

280517

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

5шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

18

87030996

IDLER

1шт.

19

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

20

82039

HEX SOC SCREW,3/8" - 16 x 1 1/4"

1шт.

21

81763

SET SCREW,Hex Soc, 3/8"-16 x 1"

2шт.

22

87488791

CHAIN

1шт.

23

80768

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

24

86541277

INSULATOR

4шт.

25

84139171

SPROCKET

Assy

1шт.

26

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

28

84140009

COVER PLATE

1шт.

29

84138961

SHAFT

1шт.

30

84132306

WASHER

4шт.

31

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

2шт.

32

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

33

280717

NUT,7/16"-14, G5

2шт.

34

87719537

TUBE,16mm ID x 85mm L

4шт.
