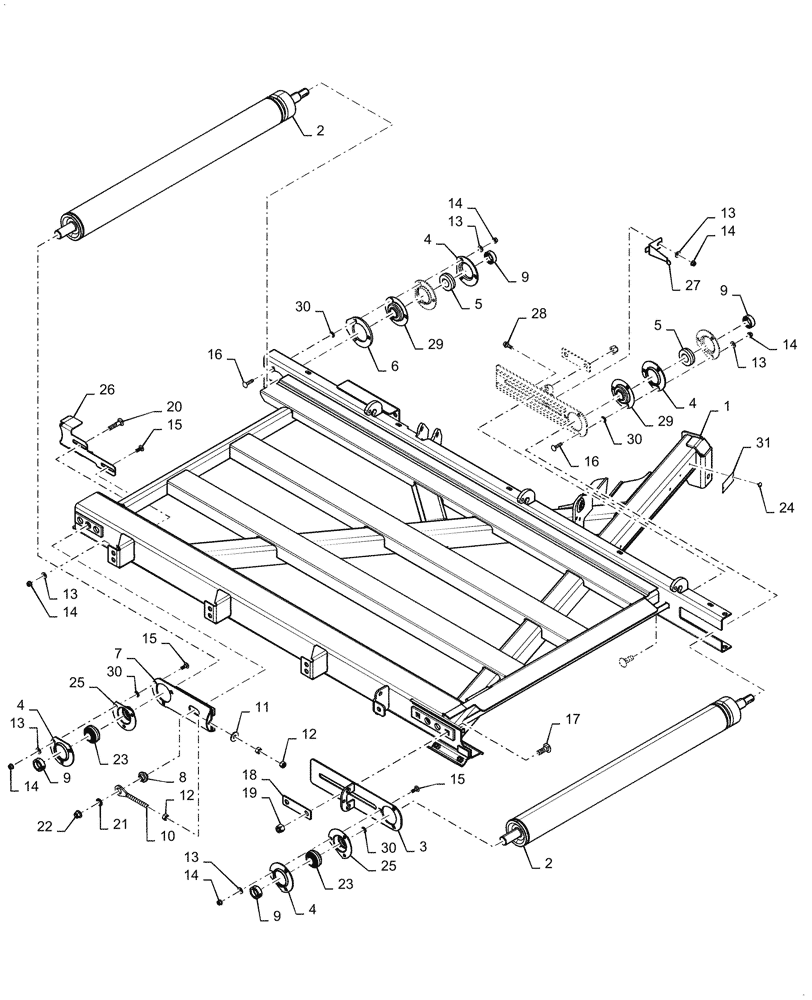

Запчасти Case IH DOUBLE WINDROW (58.900.AG[02]) - ROLLER, BELT, ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

87694636

FRAME

Merger, Dark Gray

1шт.

2

87576197

ROLL

Merger Belt

2шт.

3

84243334

MOUNT

Bearing

2шт.

3

47935841

MOUNT

Applies to MY 16 Units

2шт.

4

86636169

FLANGED BEARING

Plate

6шт.

5

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

31.75mm ID X 62mm OD

4шт.

5

84484181GV

BEARING ASSY

Value, Ball Bearing

4шт.

6

87648262

SPACER

3 Square Holed, 72mm ID

2шт.

7

87580147

MOUNTING PARTS

Bearing Mount

1шт.

8

87743292

SPACER

13.5mm ID

1шт.

9

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

1.25" ID, Set Screw NSS(5/16" X 5/16" Headless Hex, Cup Point)

4шт.

10

86560834

THREADED ROD

Eye Bolt, 4" Usable Thread 1/2" UNC

1шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

12

280431

NUT,1/2"-13, G5

3шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

7шт.

16

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

6шт.

17

280805

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

4шт.

18

84296123

STRIP

Dark Gray

2шт.

19

85700693

NUT,5/8" - 11, Gr C

4шт.

20

280504

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

.5" ID

1шт.

22

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

23

76836

BALL BEARING,1.25" ID x 2.4409" OD x 1.4375"

2шт.

24

86509499

JAM NUT,3/8"-16, G2

4шт.

25

245743

SUPPORT

Dark Gray

2шт.

26

84133869

ANGLE

Dark Gray

1шт.

27

84135832

ANGLE

Dark Gray

1шт.

28

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

40704

SEAL

3 Square Holed, 1.35 ID

2шт.

30

87625622

RETAINER

12шт.

31

NSS

NOT SOLD SEPARAT

Merger Identity Plate, Incl In Ref 1

1шт.
