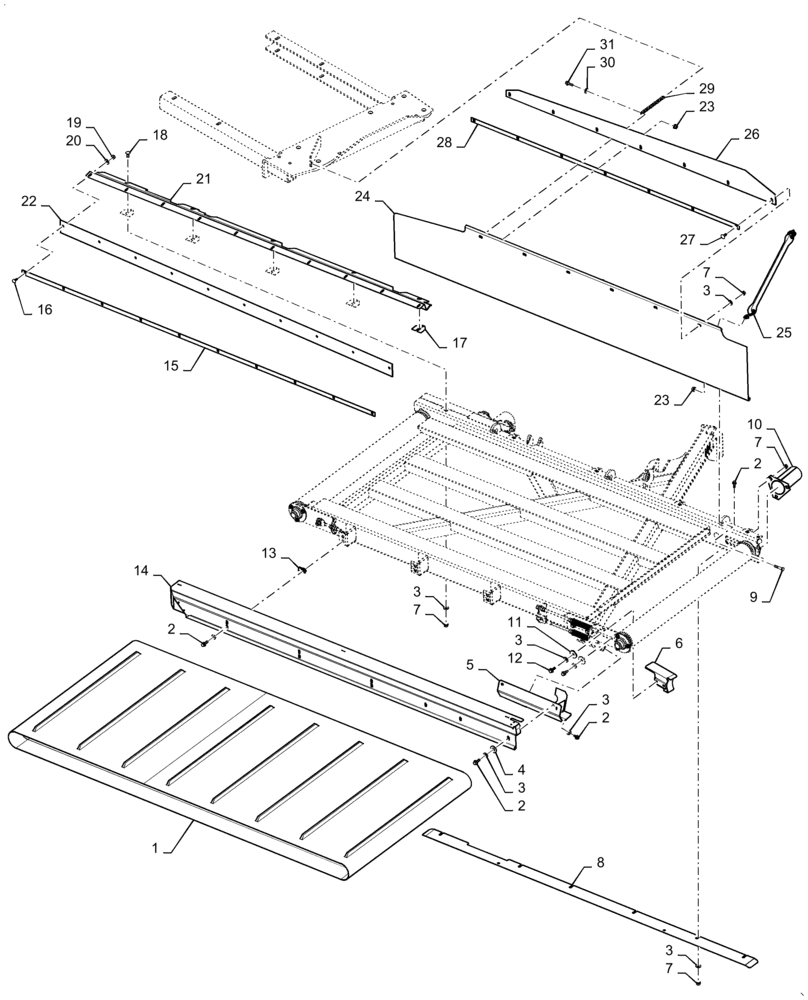

Запчасти Case IH DOUBLE WINDROW (58.900.AB[02]) - BAFFLE REAR AND BELT ASSY (58) - ATTACHMENTS/HEADERS

1

84227947

CONVEYOR BELT

, Serial Range: -YGG800200

1шт.

1

47914199

BELT

, Start Serial: YGG800201

1шт.

2

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

29шт.

4

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

2шт.

5

47743860

SHIELD

1шт.

6

84360174

GUARD

1шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

19шт.

8

87658460

GUIDE

1шт.

9

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3шт.

10

679903

SHIELD

1шт.

11

87644151

WASHER

2шт.

12

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

13

86539811

SPRING NUT

7шт.

14

47742519

SHIELD

1шт.

15

84355932

STRIP

1шт.

16

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.

17

87643058

SHIM

20шт.

18

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

19

86629544

NUT,5/16” – 18, GR B

10шт.

20

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

10шт.

21

84485109

GUARD

1шт.

22

84487152

FLAP

1шт.

23

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

24

47766881

BAFFLE

Rear

1шт.

25

86565824

FASTENER

5шт.

26

47767293

BAFFLE

1шт.

27

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

28

47767387

STRIP

1шт.

29

87704904

CHAIN

1шт.

30

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

31

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.
