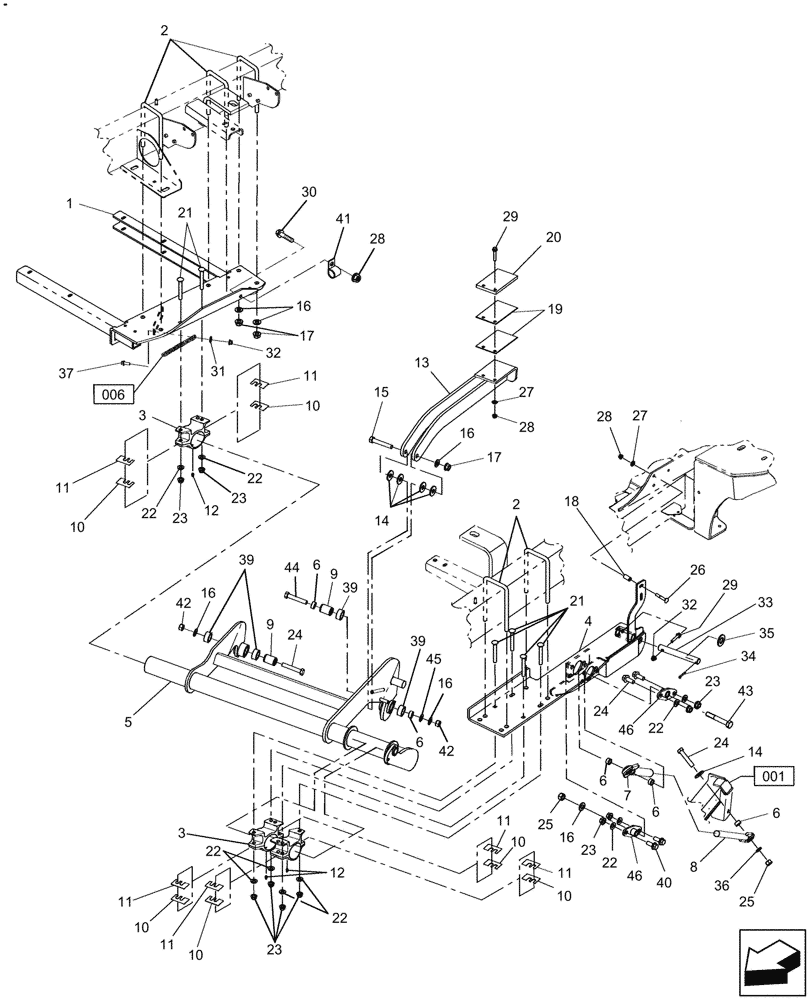

Запчасти Case IH DOUBLE WINDROW (39.100.BA) - MAIN FRAME, LINK & ROD (39) - FRAMES AND BALLASTING

1

87653361

SUPPORT

RH, Dark Gray

1шт.

2

87022287

U-BOLT

5/8" Thread

5шт.

3

87600697

ROLLER CAGE BEARING

Pillow Block, 74mm ID

3шт.

4

84217004

MOUNT

LH, Dark Gray, Serial Range: -YFG800000

1шт.

4

47743007

MOUNT

Dark Grey, Start Serial: YFG800001

1шт.

5

84191464

LIFT ARM

Dark Gray, Serial Range: -YFG800000

1шт.

5

47742798

ARM

Lift, Dark Grey, Start Serial: YFG800001

1шт.

6

87010766

SPACER

25mm OD X 17mm ID X 12mm L

6шт.

7

87580515

STABILIZER

Dark Gray

1шт.

8

87661774

STABILIZER

Dark Gray

1шт.

9

87579175

SPACER

16mm ID X 35mm OD X 50mm L

2шт.

10

87601634

SHIM

.88mm

6шт.

11

87661944

SHIM

.038mm

12шт.

12

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

3шт.

13

87603623

LEVER

Dark Gray, Serial Range: -YFG800000

1шт.

13

47770491

LEVER

, Start Serial: YFG800001

1шт.

14

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

5шт.

15

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

1шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

14шт.

17

86521608

FLANGE NUT,Flg, 5/8"-11, G5

11шт.

18

48590

SPACER

16mm OD X .980mm ID X 32mm

2шт.

19

87603287

SHIM

Zinc Coated

6шт.

20

87603089

SLIDE

Poly, 175mm x 102mm

1шт.

21

433-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5

6шт.

22

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

.5"ID X 1.0 OD

10шт.

23

86521607

FLANGE NUT,Flg, 1/2"-13, G5

10шт.

24

87314823

BOLT

5/8"-11 x 3-1/2" G8

2шт.

25

86625068

NUT,5/8"-11, G8

2шт.

26

280722

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

2шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

28

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

29

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

30

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

31

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

32

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

33

87543660

SHAFT

200 mm Long, 25mm ID

1шт.

34

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

35

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

36

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

37

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

38

87583871

PLATE

Dark Gray (Not Shown)

1шт.

39

84179982

BUSHING

35mm ID X 42mm OD X 19mm L

4шт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

41

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

42

85700693

NUT,5/8" - 11, Gr C

2шт.

43

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

44

87306801

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

1шт.

45

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

.67" ID X1.5" OD X .135" H

1шт.

46

84211178

SUPPORT

Dark Gray

2шт.
