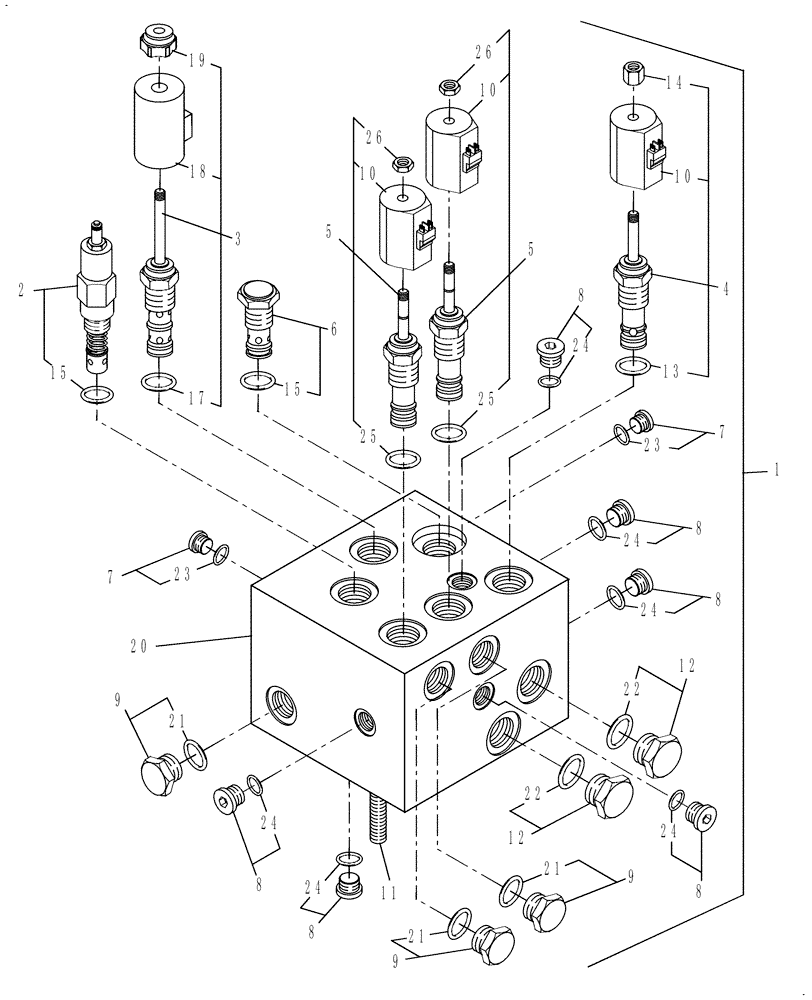

Запчасти Case IH DOUBLE WINDROW (35.905.AB) - CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

1

84231477

CONTROL VALVE

Merger, Incl 1 - 26

1шт.

2

87757014

VALVE

Pressure Relief, 3000 PSI, Incl O-Ring

1шт.

3

87757015

VALVE

Flow Control, Proportional, Incl O-Ring

1шт.

4

84231479

CONTROL VALVE

Directional Control, Incl O-Ring

1шт.

5

87506119

VALVE

Bi-Directional Cartridge, Incl O-Ring

2шт.

6

86511474

CHECK VALVE

Check, 7/8", Incl O-Ring

1шт.

7

87037030

PLUG

-5, Incl O-Ring

2шт.

8

87037031

PLUG

-6, Incl O-Ring

6шт.

9

76349

PLUG,9/16" - 18 ORB

3шт.

10

87352779

SOLENOID

Services 87506119 (5) Only

2шт.

11

NSS

NOT SOLD SEPARAT

Threaded Stud, Order Complete 87231477 Or Procure Locally

2шт.

12

214389

PLUG,3/4" - 16 ORB

2шт.

13

86514794

SEAL KIT

Services Cartridge 84231479 (4) Only

1шт.

14

86516836

NUT

Coil, .50"-20 Inside Thread

1шт.

15

86508168

SEAL KIT

Services Check Valve (6), Pressure Relief Valve (2) Only

2шт.

16

86978349

SEAL KIT

Services Bi-Directional Cartridges (5), Seal Plugs 87037030 And 87037031 Only

2шт.

17

87434006

SEAL KIT

Services Proportional Flow Control Valve (3) Only

1шт.

18

87758000

COIL

Solenoid, Services Proportional Flow Control Valve (3) Only

1шт.

19

87758003

SPECIAL NUT

Coil

1шт.

20

NSS

NOT SOLD SEPARAT

Manifold, Order Complete 84231477

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Order Seal Kit 86978349

2шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, Order Seal Kit 86978349

6шт.

25

195683A1

JAM NUT,1/2"-20

2шт.

26

87352777

SOLENOID

Services Directional Control 84231479 Only (4)

1шт.
