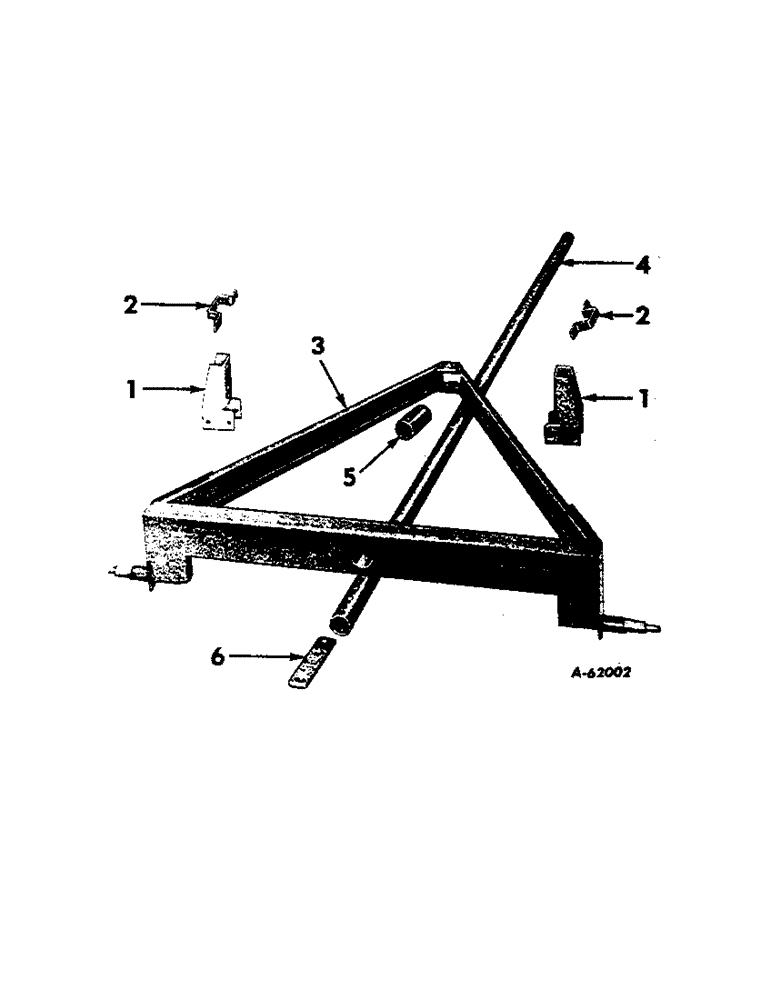

Запчасти Case IH VARIOUS (B-084) - REAR FRAME AND REACH POLE

1

459917R1

STAKE, bolster

2шт.

BOLT, 1/2 x 4 c-z hex-hd mach

4шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

1шт.

3

463657R91

FRAME, rear

1шт.

PIN, 1/8 x 1-1/4 cotter

2шт.

69442D

NUT

3/4UNF slt jam

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

4

484969R1

POLE, standard reach, Will work for 463697R3

1шт.

4

463698R2

POLE, extended reach, special

1шт.

4

470152R2

POLE, cotton reach, special

1шт.

5

463666R1

COLLAR, reach

1шт.

BOLT, 1/2 x 3-1/2 c-z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

1шт.

6

463668R1

PLATE, rear draft

1шт.

BOLT, 1/2 x 1-1/4 c-z hex-hd mach

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

2шт.
