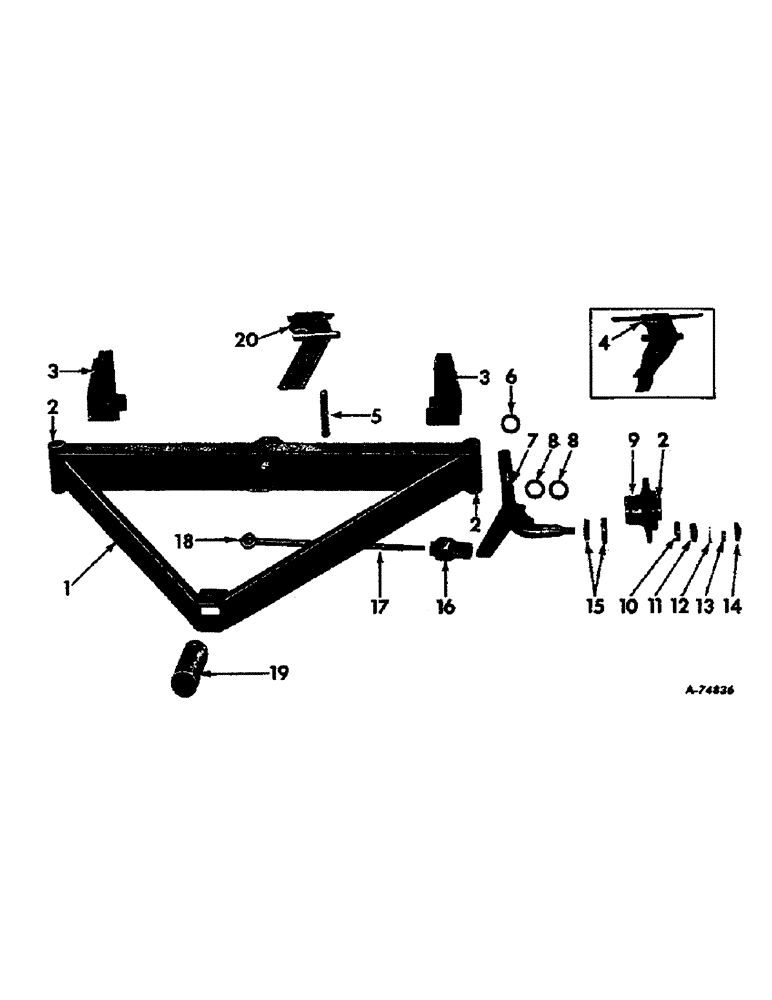

Запчасти Case IH VARIOUS (B-083) - FRONT FRAME, SPINDLES AND STEERING BRACKET

1

463640R92

FRAME, front

1шт.

472065R1

SCREW, 1/2 x 3.26 c-z hex-hd cap

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

3шт.

BOLT, 1/2 x 3-1/2 c-z hex-hd mach

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 straight self-tapping lub

4шт.

3

459917R1

STAKE, bolster

1шт.

BOLT, 1/2 x 4 c-z hex-hd mach

4шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

4шт.

4

463634R11

BRACKET, steering, Serial Range: 1960-1962

1шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

WASHER, 1-1/32 x 1-1/2 x 16 ga

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

2шт.

5

463633R1

PIN, king

1шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

WASHER, 1-1/32 x 1-1/2 x 16 ga

2шт.

6

47411H

WASHER, 1-21/32 x 2-1/4 x 11 ga

2шт.

7

472069R91

SPINDLE, front LH, 1963 and since

1шт.

7

463651R91

SPINDLE, front LH, Serial Range: 1960-1962

1шт.

PIN, 1/8 x 1-1/4 cotter

1шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

7

472070R91

SPINDLE, front RH, 1963 and since

1шт.

7

463652R91

SPINDLE, front RH, Serial Range: 1960-1962

1шт.

PIN, 1/8 x 1-1/4 cotter

1шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

8

463654R1

WASHER, 1-21/32 x 2-1/1 x 11 ga thrust

4шт.

9

465493R1

HUB

wheel, 1961 and since

4шт.

9

663907R11

HUB

wheel, Serial Range: 1960-1962

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

24шт.

10

371883R1

BEARING CUP

Outer

4шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

4шт.

12

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

4шт.

13

69442D

NUT

3/4UNF slt jam

4шт.

14

663908R1

CAP

wheel hub

4шт.

15

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

CONE W/SEAL AND CUP, inner bearing

4шт.

16

463639R1

CLEVIS, rod

2шт.

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 dld-std-hd

2шт.

PIN, 1/4 x 1-1/4 cotter

2шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga

6шт.

17

463638R2

ROD, steering

2шт.

NUT, 3/4 jam

2шт.

P14608

AXLE PIN

PIN, 3/4 x 2-3/4 dld-std-hd

1шт.

PIN, 1/4 x 1-1/8 cotter

1шт.

551178R1

WASHER

25/32 x 1-3/4 x 16 ga

4шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 straight lub

2шт.

19

463656R1

COLLAR, reach

1шт.

BOLT, 1/2 x 3-1/2 c-z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

1шт.

20

472066R91

BRACKET, steering, 1963 and since

1шт.

PIN, 1/4 x 1-1/8 cotter

2шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

625565R1

PIN, 3/4 x 1-5/8 headed

2шт.

551178R1

WASHER

25/32 x 1-3/4 x 16 ga

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

2шт.

WASHER, 1-1/32 x 1-1/2 x 16 ga

2шт.

662192R91

DISC

WHEEL W/RIM, disk, 15 X 5K

4шт.

463034R1

RIM

WHEEL W/RIM, disk, 14 X 5K

4шт.

459431R91

WHEEL

W/RIM, disk, 16 X 5.50F

4шт.

TIRE, passenger, 6.70 X 15, 7.00 X 16, 7.10 X 15, 7.50 X 16, 6 ply, or rib implement 7.50 X 16, 6 ply

4шт.
