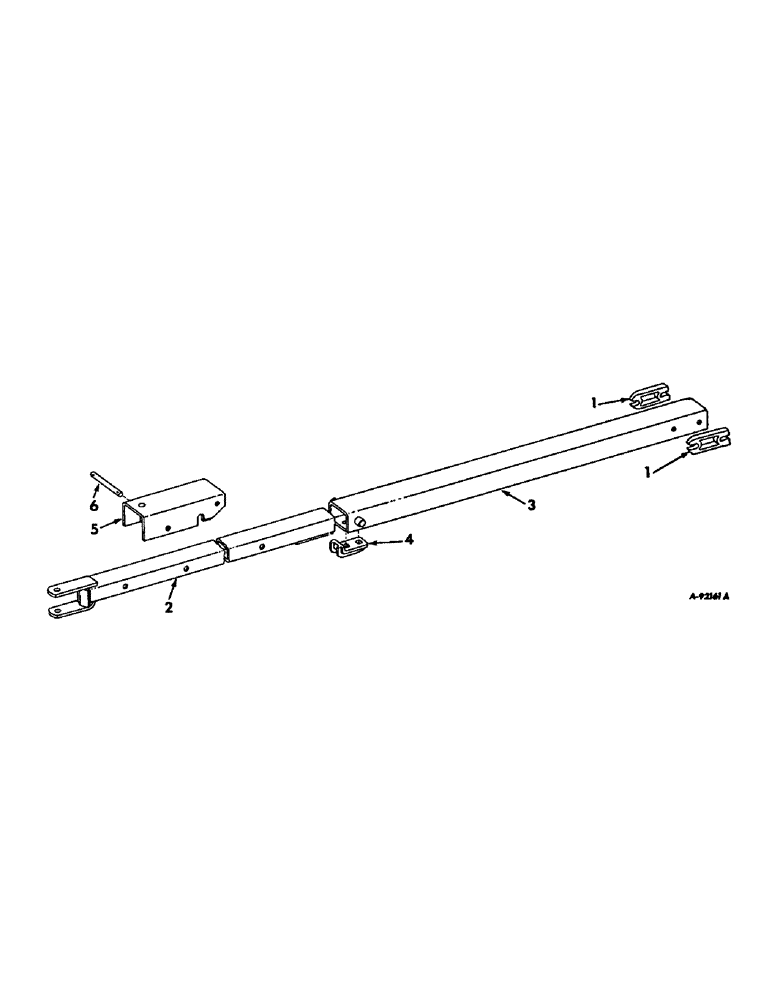

Запчасти Case IH VARIOUS (B-079) - TELESCOPING HITCH POLE ATTACHMENT

1

489814R1

SPACER

2шт.

22485R1

BOLT,5/8" x 7 1/4", Gr 5

SCREW, 5/8-11 x 7-1/4 znd hex-hd cap

1шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 znd hex-hd cap

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

2

492350R1

HITCH ASSY

1шт.

3

492351R1

TUBE ASSY

1шт.

4

489807R3

STOP

1шт.

492028R1

BOLT, 3/8 x 1-5/16 c-z no. 3 plow

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

489808R1

LOCK ASSY

1шт.

540421R1

SPRING, lock

1шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

6

489813R1

SHAFT, pivot

1шт.
