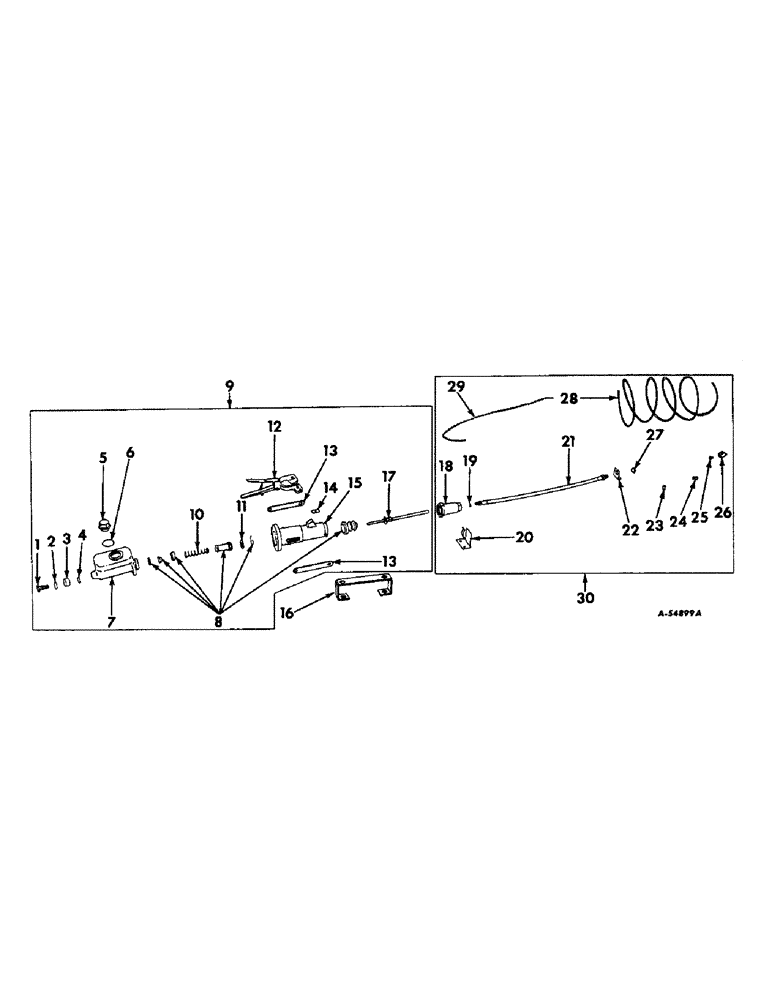

Запчасти Case IH VARIOUS (B-078) - HYDRAULIC BRAKE TOWING VEHICLE AND COUPLER, FOR TRAILERS W/ HYDRAULIC BRAKES

1

48165H

BANJO BOLT

BOLT, connector

1шт.

2

48166H

WASHER

GASKET, copper

1шт.

3

130998H

CONNECTOR, bolt

1шт.

4

48167H

GASKET

GASKET, copper

1шт.

5

52043HAX

CAP

filler

1шт.

6

52045HA

GASKET

cap

1шт.

7

461137R1

HOUSING, cylinder

1шт.

8

461136R91

KIT, cylimner repair

1шт.

9

461129R91

COUPLER W/MASTER CYLINDER

1шт.

10

461138R91

RETURN SPRING ASSY

1шт.

11

461135R1

STOP, piston

1шт.

12

461133R91

LEVER TRIP ASSY

1шт.

13

461131R1

ARM, spring actuation

2шт.

14

461132R1

LATCH, lever

1шт.

15

461134R91

HOUSING ASSY, coupler

1шт.

16

461151R1

BRACKET, coupler

1шт.

SCREW, 7/16 x 1 cap

2шт.

WASHER, 7/16 lock

2шт.

17

461130R1

ROD, piston actuation

1шт.

18

461123R91

SLAVE CYLINDER ASSY

1шт.

20

461126R1

CLIP, cylinder mounting

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

10-24 x 1/2 rd-hd slotted mach

1шт.

134541

NUT, 10-24 sq mach screw

1шт.

21

49567H

HOSE ASSY

1шт.

22

461128R1

BRACKET, hose mounting

1шт.

23

432667

CLIP, tube fastener

5шт.

24

432686

CLIP, tube fastener

5шт.

25

222-1095

TUBE NUT,7/16"-24

NUT, inverted flared tube

2шт.

26

461124R1

TEE, male run

1шт.

26

461125R1

TEE, male run

1шт.

27

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

2шт.

28

995061R1

TUBE

TUBING, copper

8шт.

29

461127R1

CHAIN, 22-1/2 in long

1шт.

30

461122R91

KIT, vehicle towing

1шт.
