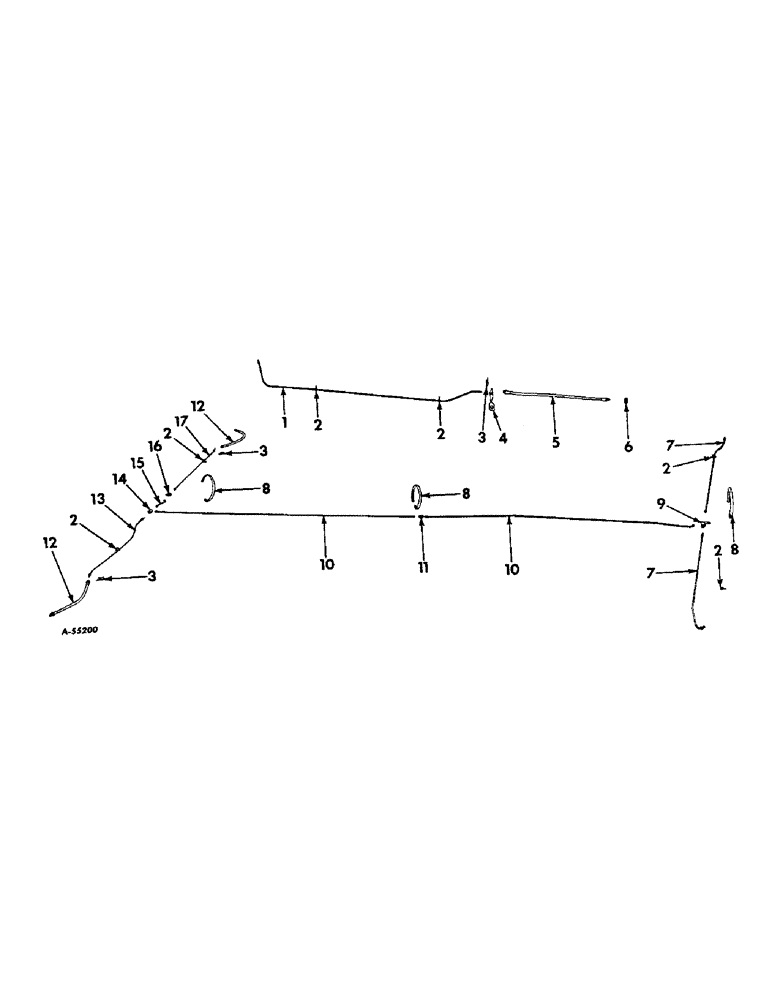

Запчасти Case IH VARIOUS (B-077) - HYDRAULIC BRAKE LINES AND CLAMPS, FOR TRAILERS WITH HYDRAULIC BRAKES

1

461150R1

BRAKE LINE ASSY, pole

1шт.

2

432667

CLIP, tube fastener

6шт.

3

48184H

TERMINAL CONNECTOR

CLIP, spring lock

3шт.

4

461139R1

CLIP, hose

1шт.

5

461140R1

HOSE ASSY

1шт.

6

117966

GROMMET,5/8" ID x 1 11/64" x .188"

rubber

1шт.

7

461149R1

BRAKE LINE ASSY, rear

2шт.

8

357870R91

CLAMP

brake line

3шт.

9

461144R1

TEE, 1/4 in. tube frame

1шт.

10

461148R2

BRAKE LINE ASSY, center

2шт.

11

NLS

NO LONGER SERVICED

UNION, 1/4 in. tube (PN 137413)

2шт.

12

461142R1

HOSE ASSY, wheel

2шт.

13

461145R1

BRAKE LINE ASSY, front LH

1шт.

14

127927

TEE,7/16"-24, Inv Flare, Fem, Brass

1/4 in. tube

1шт.

15

461146R1

BRAKE LINE ASSY, transition

1шт.

16

461141R1

TEE, 1/4 in. tube hose

1шт.

17

461147R1

BRAKE LINE ASSY, front RH

1шт.
