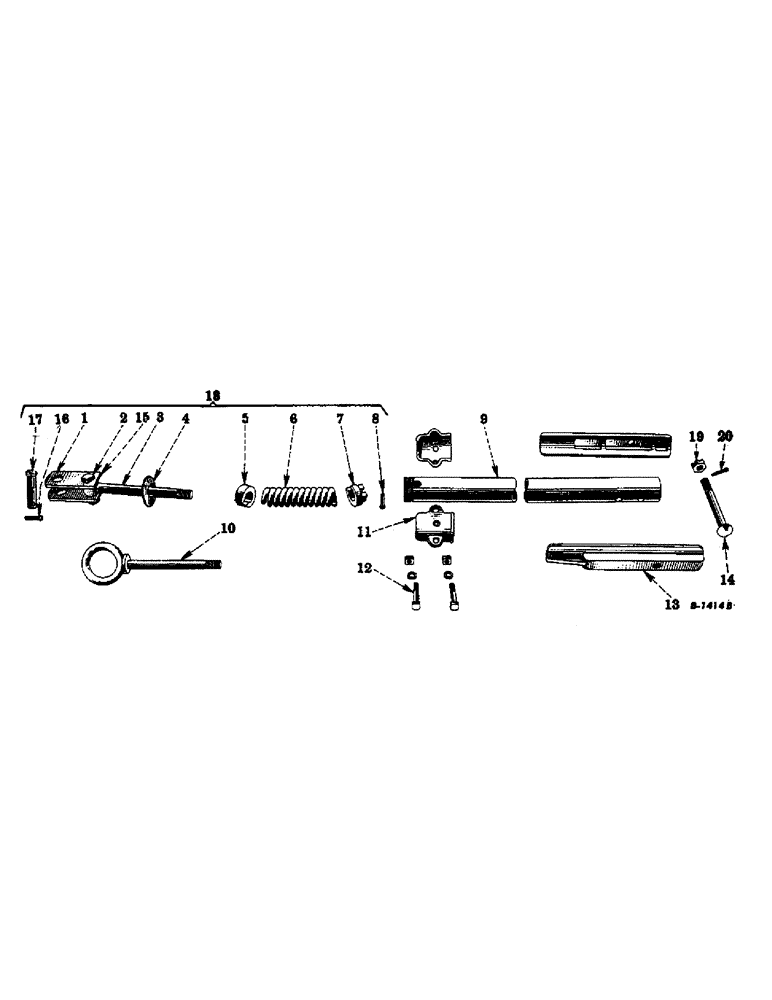

Запчасти Case IH VARIOUS (A-12) - STUB TONGUE AND PINTLE HOOK TRACTOR HITCH, SPECIAL
№
Артикул
Название
Примечание
Количество
ZMA422
STUB TONGUE, tractor hitch, machine attachment
1шт.
ZMA498
PINTLE HOOK, tractor hitch, machine attachment, Serial Range: 1940-1953
1шт.
1
16134WA
PLATE, clevis, ZMA422
2шт.
2
12280R1
BOLT, 5/8-11NC x 2-3/4 dld mach
2шт.
427630
PLUG
NUT, 5/8-11NC slt hex
2шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
3
16611WA
ROD, coupling, ZMA422
1шт.
432-1628
COTTER PIN,1/4" x 1 3/4"
Pin, Split (Cotter), 1/4" x 1 3/4"
1шт.
4
M22932
WASHER, draft clevis, ZMA422, 1940
1шт.
4
16731WA
WASHER, draft clevis, ZMA422, Serial Range: 1941-1954
1шт.
5
675W
GUIDE, coupling clevis rod, ZMA422 and ZA498
1шт.
6
E766F
SPRING, tongue hitch
1шт.
7
693W
NUT, coupling rod, ZMA422, ZMA498
1шт.
8
432-1628
COTTER PIN,1/4" x 1 3/4"
Pin, Split (Cotter), 1/4" x 1 3/4"
1шт.
9
16703W
TONGUE, stub, ZMA422, ZMA498
1шт.
10
16535W
ROD, pintle hook drawbar coupling, ZMA498, Serial Range: 1940-1953
1шт.
E722
NUT, 7/8-9NC horned
1шт.
432-1628
COTTER PIN,1/4" x 1 3/4"
PIN, 1/4 x 1-1/4 cot.
1шт.
Q3453
WASHER
29/32 ID x 2 OD x no. 12 ga, plain
1шт.
11
692W
CAP, coupling rod, ZMA422 and ZMA498
2шт.
12
13358R11
BOLT W/NUT, 7/16-14NC x 2-1/4 mach
4шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
13
691W
ADAPTER, stub tongue, ZMA 422 and ZMA498
2шт.
14
Q3841
BOLT, 5/8-11NC x 6-1/8 dld crg, draft bracket and tongue connection
1шт.
M153M
NUT
5/8-11NC horned
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
15
16612W
BUSHING, coupling rod, ZMA422
1шт.
16
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
1шт.
17
Q1238
HEADED PIN,3/4" x 3 1/2"
PIN, 3/4 x 3-1/2 std-hd dld, drawbar clevis, ZMA422
1шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
1шт.
18
16880W
ROD ASSY, coupling, ZMA422
1шт.
19
M153M
NUT
5/8-11NC horned, ZMA422, ZMA498
1шт.
20
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
Выбрано товаров: 33
