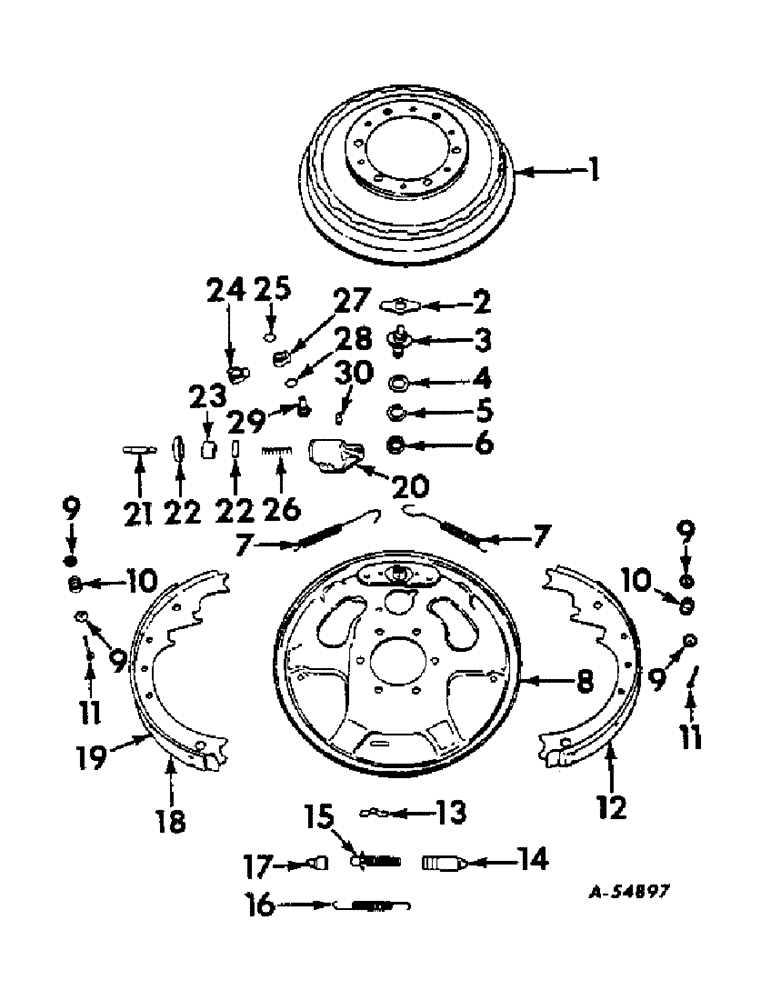

Запчасти Case IH VARIOUS (B-076) - HYDRAULIC BRAKES AND DRUMS, FOR TRAILERS W/HYDRAULIC BRAKES

1

461152R91

DRUM ASSY

4шт.

SCREW, 3/8 x 1 cap

24шт.

WASHER, 3/8 lock

24шт.

2

66511H

PLATE, shoe guide

4шт.

3

81016R1

PIN, anchor

4шт.

4

59398H

WASHER, anchor pin

4шт.

5

103331

WASHER,5/8"

5/8"

4шт.

6

88697H

NUT, 5/8

4шт.

7

121518R1

SPRING

anchor

8шт.

8

153793R11

PLATE ASSY, backing LH

2шт.

SCREW, 3/8 x 3/4 cap

12шт.

NUT, 3/8

12шт.

WASHER, 3/8 lock

12шт.

8

153794R11

PLATE ASSY, backing RH

2шт.

SCREW, 3/8 x 3/4 cap

12шт.

NUT, 3/8

12шт.

WASHER, 3/8 lock

12шт.

9

1032Y

BELLEVILLE SPRING

CUP, shoe spring

16шт.

10

80126H

SPRING

hold down

8шт.

11

59397H

PIN, shoe spring

8шт.

12

81007R94

SHOE ASSY, primary

4шт.

13

22324H

COVER

PLATE, cover

4шт.

14

81019R1

SOCKET, adjusting

4шт.

15

59390H

SCREW

adjusting

4шт.

16

59396H

SPRING, adjusting screw

4шт.

17

81015R1

NUT, pivot

4шт.

19

26304H

RIVET,Csk, .146" x 1/4"

shoe tubular

72шт.

20

87912R91

CYLINDER

ASSY, wheel LH

2шт.

20

87913R91

CYLINDER ASSY, wheel RH

2шт.

21

59394H

LINK

connecting

4шт.

22

95302R91

KIT

repair

4шт.

23

51902H

PISTON, wheel cylinder

4шт.

24

131656H

CONNECTOR, front wheel bolt

2шт.

26

72606R1

SPRING, piston cup

4шт.

27

130998H

CONNECTOR, rear wheel bolt

2шт.

28

48166H

WASHER

GASKET, rear wheel copper

2шт.

29

461194R1

BOLT, rear wheel connector

2шт.

30

82301R1

BLEEDER,3/8" - 24 x 117mm

bleeder

4шт.
