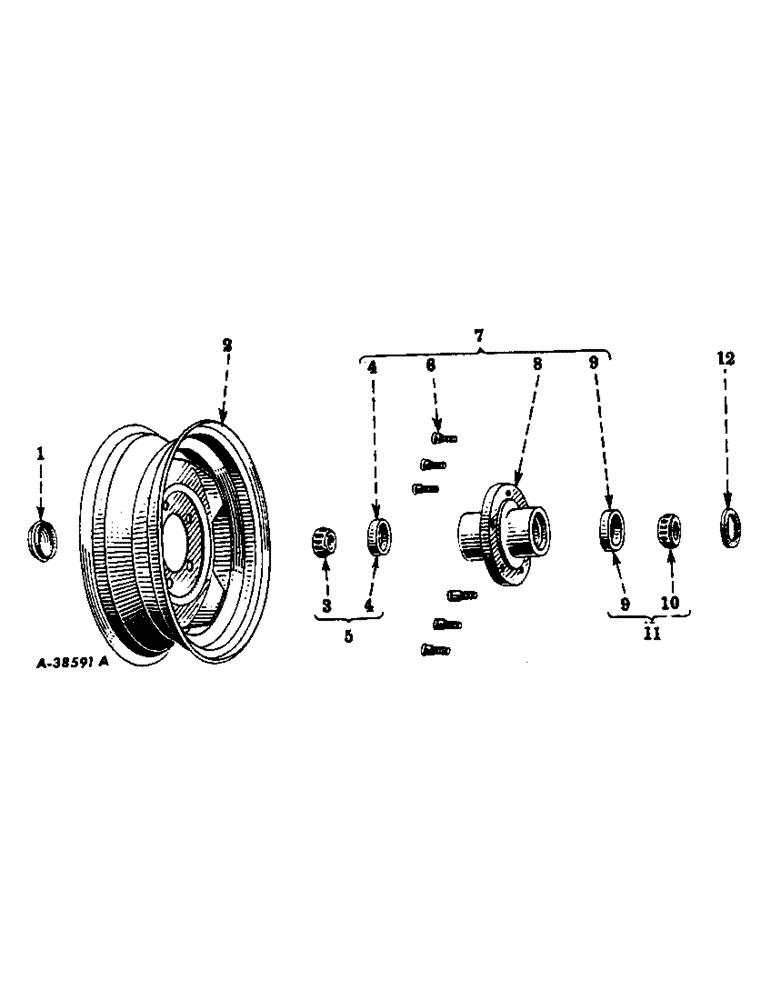

Запчасти Case IH VARIOUS (B-075) - BEARING, HUBS AND WHEELS

1

663906R1

CAP

wheel hub

4шт.

2

459431R91

WHEEL

DISC AND RIM, wheel

4шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer wheel bearing

4шт.

4

651817R1

BEARING CUP

CUP, outer wheel bearing

4шт.

5

651819R91

BEARING ASSY,1.2508" ID x 2.329" OD x 0.625"

ASSY, outer wheel roller

4шт.

6

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

24шт.

7

663905R11

HUB ASSY, wheel, less bolts, 4 for unit A, Serial Range: 1958-1962

1шт.

7

465496R11

HUB

ASSY, wheel, less bolts, 4 for unit A, 1962 and since

1шт.

7

663910R11

HUB ASSY, wheel, less bolts, 4 for unit B

1шт.

8

HUB, wheel, Order 663905R11, 4 for unit A, Serial Range: 1958-1962

1шт.

8

HUT, wheel, Order 465496R11, 4 for unit A, 1962 and since

1шт.

8

HUB, wheel, Order 663910R11, 4 for unt B

1шт.

9

663558R1

BEARING CUP

CUP, inner wheel bearing

4шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, inner wheel bearing

4шт.

11

663556R91

TAPERED BEARING

ASSY, inner wheel roller, Order 663558R1 and 663557R91

4шт.

12

459919R91

SEAL

oil, Serial Range: 1958-1962

4шт.

12

467992R91

OIL SEAL

SEAL, oil, 1962 and since

1шт.

TUBE, pneumatic, 7.50 X 16, Not illustrated

4шт.

TIRE, 8-ply I-1 ribbed implement pneumatic, 7.50 X 16, Not illustrated

1шт.
