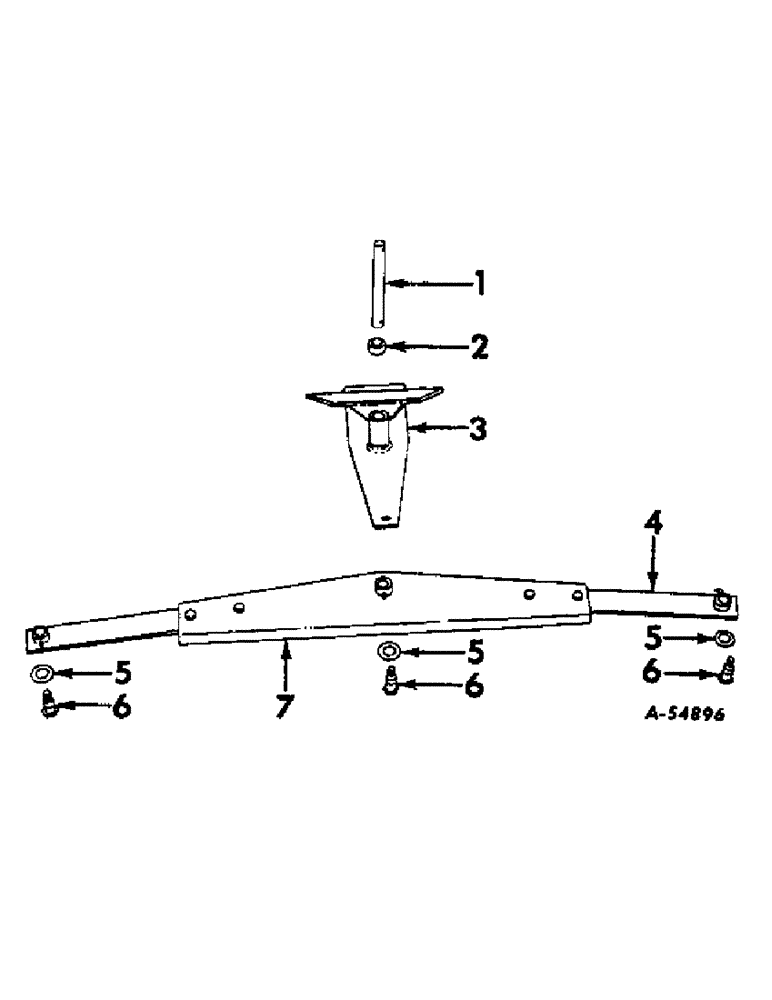

Запчасти Case IH VARIOUS (B-073) - TIE BAR AND STEERING BRACKET

1

461114R1

PIN, king

1шт.

577140R1

LOCK PIN,3/8" x 1 7/8", Slotted

Pin, 3/8" x 1 7/8", Slotted

2шт.

2

461096R1

COLLAR, king pin

1шт.

3

461118R91

BRACKET ASSY, steering

1шт.

4

461117R11

ARM ASSY, tie bar outer

2шт.

19230R1

FITTING, 5/16-24 str lub, 1958 to 1960

2шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self-tapping str lub, 1960 and since

2шт.

5

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

3шт.

NUT, 5/8 cd-pltd slotted

3шт.

PIN, 1/8 x 1-1/4 cotter

3шт.

7

461115R91

TIE BAR ASSY

1шт.

7

461116R11

ARM ASSY, tie bar center

1шт.

BOLT, 1/2 x 1-1/4 cd-pltd hex-hd mach

4шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 cd-pltd lock

4шт.

WASHER, 17/32 x 1 x 16 ga cd-pltd

4шт.

17038R1

FITTING, 5/16-24 str lub, 1958 to 1960

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self-tapping str lub, 1960 and since

1шт.
