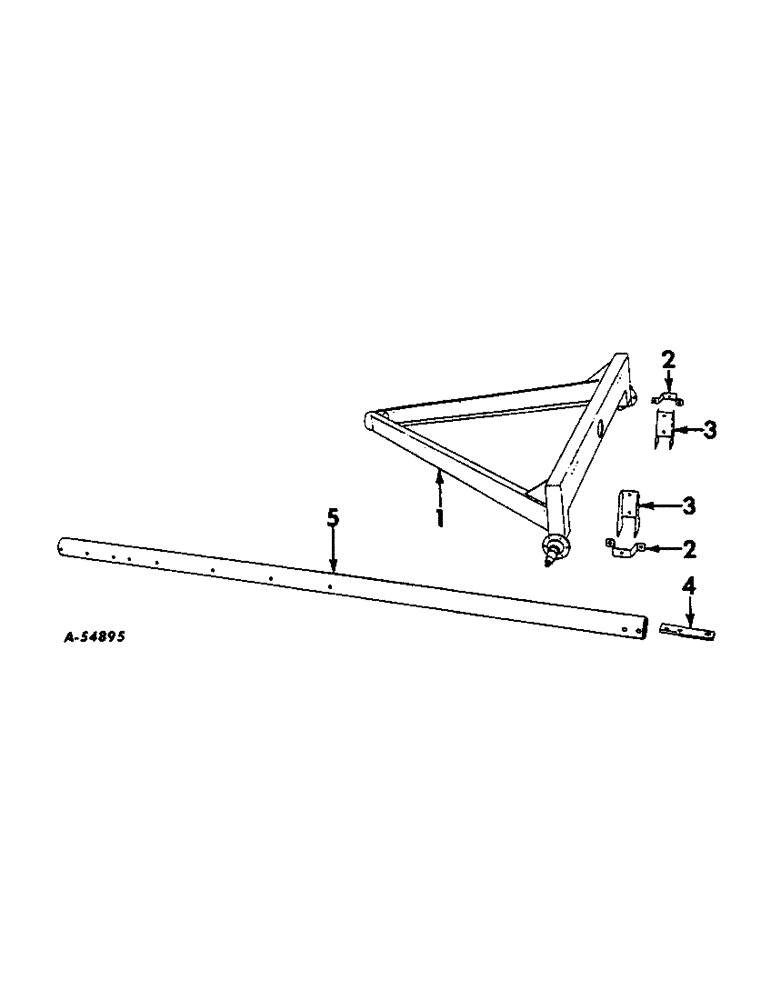

Запчасти Case IH VARIOUS (B-072) - REAR FRAME AND REACH POLE

1

461113R91

FRAME ASSY, rear, Unit B

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 slotted jam

2шт.

PIN, 1/8 x 1-1/2 cotter

2шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

2шт.

BOLT, 5/8 x 5 cd-pltd hex-hd mach

1шт.

458188R1

NUT

5/8-11NC hex. lock

1шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga cd-pltd

2шт.

1

461106R91

FRAME ASSY, rear, Unit A

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 slotted jam

2шт.

PIN, 1/8 x 1-1/2 cotter

2шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

2шт.

BOLT, 5/8 x 5 cd-pltd hex-hd mach

1шт.

458188R1

NUT

5/8-11NC hex. lock

1шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga cd-pltd

1шт.

3

459917R1

STAKE, bolster

2шт.

BOLT, 1/2 x 4 cd-pltd hex-hd mach

4шт.

455388R1

NUT

1/2-13 Maclean Fogg lock

4шт.

4

459918R1

PLATE, rear draft

1шт.

BOLT, 5/8 x 1-1/4 cd-pltd hex-hd mach

2шт.

458188R1

NUT

5/8-11NC hex. lock

2шт.

5

459697R1

POLE, reach, standard

1шт.

5

459698R1

POLE, extended reach, special for extendig wheel base

1шт.

5

478530R1

PIPE, reach pole, special in lieu of standard reach pole for use with cotton boxes

1шт.
