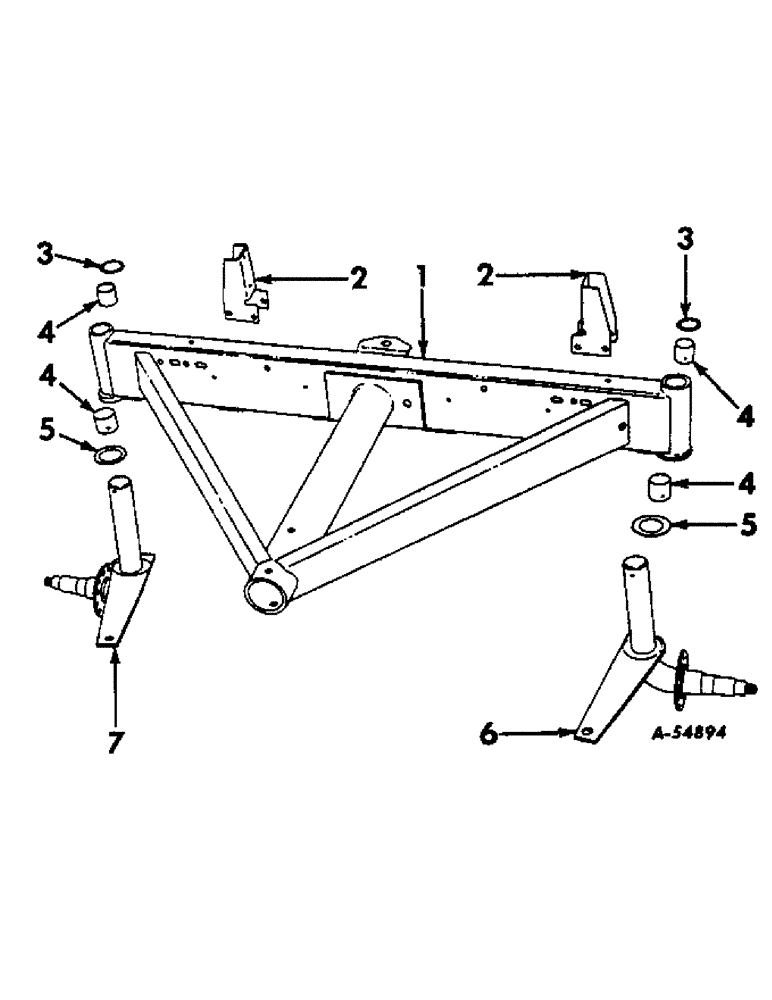

Запчасти Case IH VARIOUS (B-071) - FRONT FRAME AND SPINDLES

1

461086R91

FRAME ASSY, front

1шт.

BOLT, 5/8 x 5 cd-pltd mach

2шт.

458188R1

NUT

5/8-11NC hex. lock

2шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , 1958 to 1960 1/8"-27 x .66 lg

2шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self-tapping str lub, 1960 and since

2шт.

2

459917R1

STAKE, blster

2шт.

BOLT, 1/2 x 4 mach

4шт.

455388R1

NUT

1/2-13 Maclean Fogg lock

4шт.

3

Q3491

WASHER, 2-1/32 x 2-3/4 x 14 ga

2шт.

4

461091R1

BUSHING, front spindle

4шт.

5

461102R1

WASHER, 2-1/32 x 3-1/4 x 11 ga

4шт.

6

461104R1

SPINDLE ASSY, front RH, Unit B

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 slotted jam

1шт.

PIN, 1/8 x 2-1/2 cotter

1шт.

PIN, 1/4 x 2-1/2 roll

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

1шт.

6

461099R91

SPINDLE ASSY, front, Unit A

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 slotted jam

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

PIN, 1/4 x 2-1/2 roll

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

1шт.

7

461098R91

SPINDLE ASSY, front LH, Unit A

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 slotted jam

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

PIN, 1/4 x 2-1/2 roll

1шт.

615916R1

WASHER, 29/32 x 1-3/4 x 11 ga

1шт.

7

461103R91

SPINDLE ASSY, LH, Unit B

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 slotted jam

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

PIN, 1/4 x 2-1/2 roll

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

1шт.
