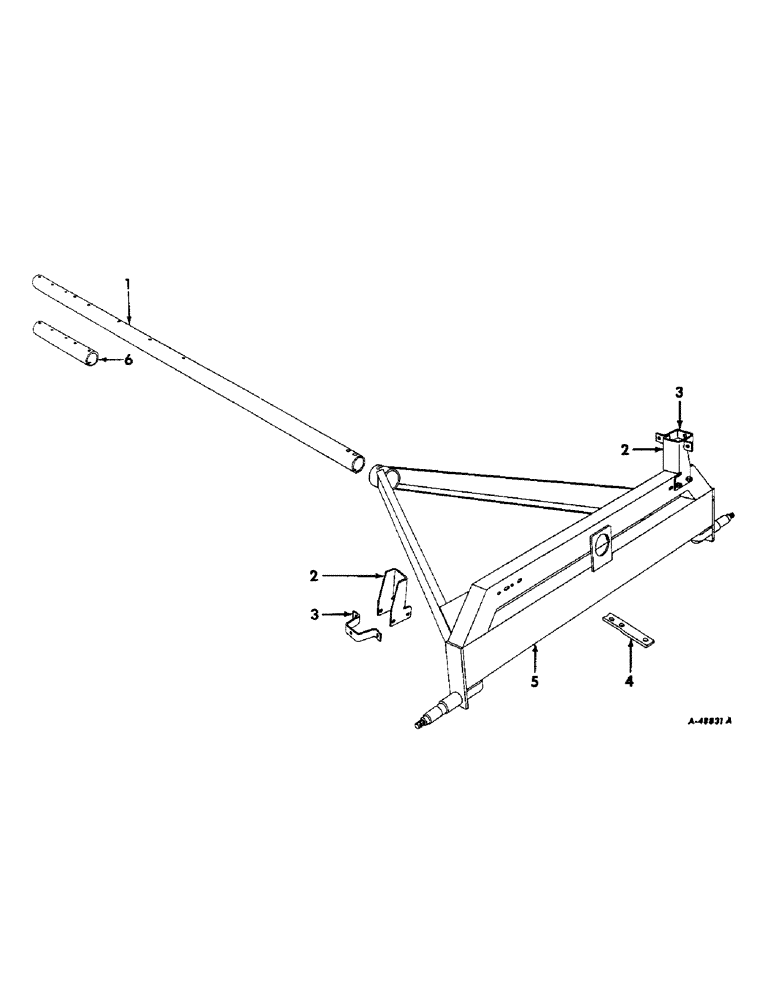

Запчасти Case IH VARIOUS (B-068) - REAR AXLE AND REACHES

1

459697R1

POLE, reach, standard

1шт.

1

459698R1

POLE, extended reach, special for extending wheel base

1шт.

1

478530R1

PIPE, reach pole, special in lieu of standard reach pole for use with cotton boxes

1шт.

2

459917R1

STAKE, bolster

2шт.

4

459918R1

PLATE, rear draft

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11UNC x 1-1/2 cd-pltd hex-hd mach

1шт.

458188R1

NUT

5/8-11UNC hex. lock

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

459936R91

AXLE ASSY, rear

1шт.

17452R11

BOLT W/NUT, 1/2-12UNC x 1-1/4 cd-pltd hex-hd mach

8шт.

18830R1

BOLT,Hex, 5/8"-11 x 5", G2

W/NUT, 5/8-11UNC x 5 cd-pltd hex-hd mach

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

7/8-14NF slt-hex.

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

460059R1

PIPE, internal reach

1шт.

476770R91

PRODUCT GRAPHIC PACKAGE, Consists of:

1шт.

2751049R1

PRODUCT GRAPHIC

MCCORMICK INTERNATIONAL, on rear axle

1шт.

2750218R2

141 TRACTOR TRAILER, on rear axle, product graphic

1шт.

2750120R1

PRODUCT GRAPHIC

IH, on rear axle

1шт.
