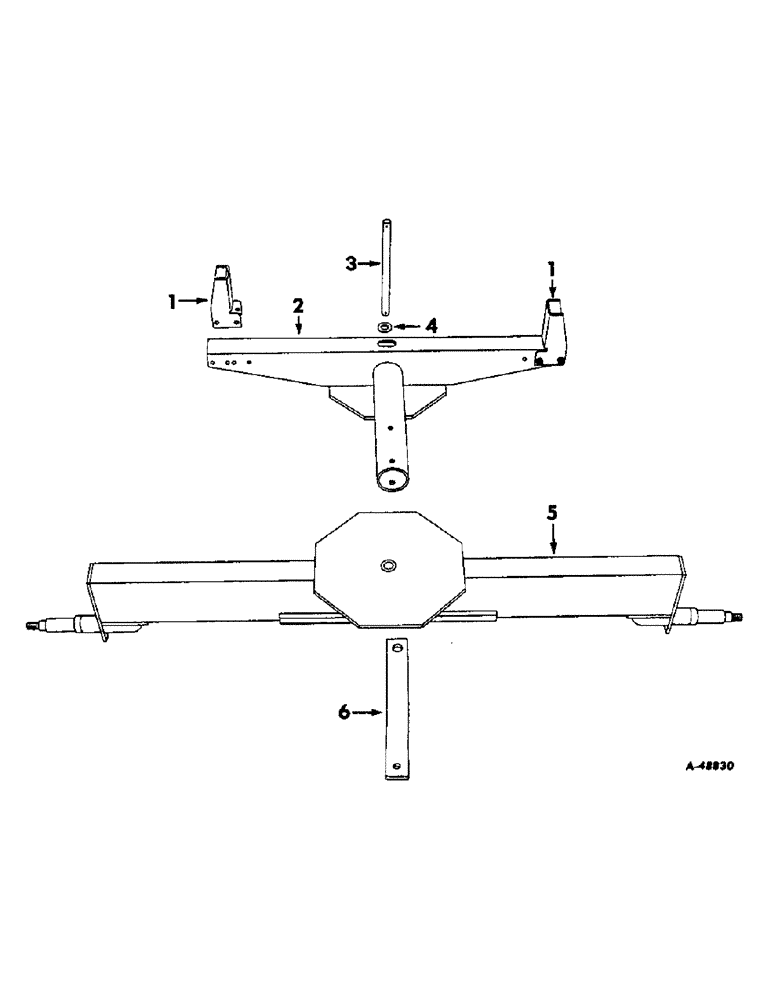

Запчасти Case IH VARIOUS (B-067) - FRONT AXLE AND BOLSTER

1

459917R1

STAKE, bolster

2шт.

2

459921R91

BOLSTER ASSY, front

1шт.

17452R11

BOLT W/NUT, 1/2-13UNC x 1-1/4 cd-pltd hex-hd mach

8шт.

18830R11

BOLT

W/NUT, 5/8-11UNC x 5 cd-pltd hex-hd mach

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1/8 x 30 deg elbow lub

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

459916R1

PIN, king

1шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

2шт.

4

Q162

WASHER

1-5/32 ID x 1-3/4 OD x 16 ga plain

2шт.

5

459925R91

AXLE ASSY, front

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1/8 x 30 deg elbow lub

1шт.

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8 straight lub

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-14NF slt-hex.

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

28855B

HEADED PIN,7/8" x 2"

PIN, 7/8 x 2 dld std-hd

2шт.

446265

WASHER, 15/16 ID x 2 OD x .165 plain

2шт.

6

459945R11

LINK, front axle draft

1шт.

19702R1

BOLT (SPREADER)

BOLT, 5/8-11UNC x 5-3/4 cd-pltd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11UNC cd-pltd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
