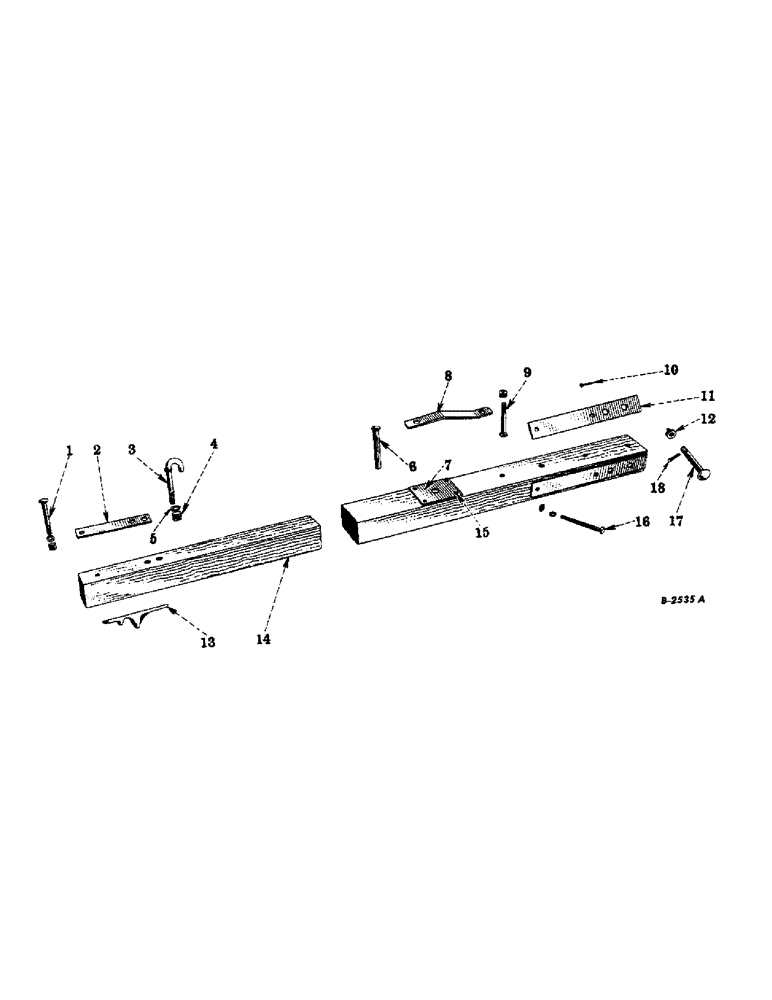

Запчасти Case IH VARIOUS (A-11) - WOOD TONGUE, 16501WA, SPECIAL, BUILT 1940 TO 1953

16510WA

WOOD TONGUE, machine attachment, special

1шт.

1

15181R11

BOLT

W/NUT, 3/8-16NC x 3-5/8 crg

1шт.

2

16459W

PLATE, tongue tip wearing

1шт.

3

MA992

BOLT, tongue hook

1шт.

4

105608

NUT

1/2-13NC square

1шт.

5

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

Q1430

PIN, 5/8 x 5-3/8 dld, std-hd

1шт.

7

4021SA

PLATE, tongue wearing

1шт.

112179

SCREW, no. 10 x 1 fl-hd drive

4шт.

8

13408S

STRAP, hammer

1шт.

9

15174R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13NC x 3-1/2 crg

1шт.

Q1430

PIN, 5/8 x 5-3/8 dld std-hd

1шт.

10

112191

SCREW, no. 12 x 1-1/2 fl-hd drive

4шт.

11

16399W

PLATE, tongue side, will work for 5556SA

2шт.

13524R11

BOLT W/NUT, 3/8-16NC x 4-1/2 mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

112191

SCREW, no. 12 x 1-1/2 fl-hd drive

4шт.

12

M153M

NUT

5/8-11NC horned

1шт.

13

646W

HOLDBACK, neckyoke

1шт.

14

5171SG

TONGUE

1шт.

15181R11

BOLT

W/NUT, 3/8-16NC x 3-5/8 crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

13011SH

TONGUE ASSY, Composed of

1шт.

MA992

BOLT

1шт.

646W

HOLDBACK

1шт.

16399W

PLATE, side

2шт.

4021SA

PLATE, wearing

1шт.

16459W

PLATE, wearing

1шт.

5171SG

TONGUE

1шт.

15

112179

SCREW, no. 10 x 1 fl-hd drive

4шт.

16

13524R11

BOLT W/NUT, 3/8-16NC x 4-1/2 mach

2шт.

17

Q3841

BOLT, 5/8-11NC x 6-1/8 dld crg, draft bracket and tongue connection

1шт.

M153M

NUT

5/8-11NC horned

1шт.

18

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
