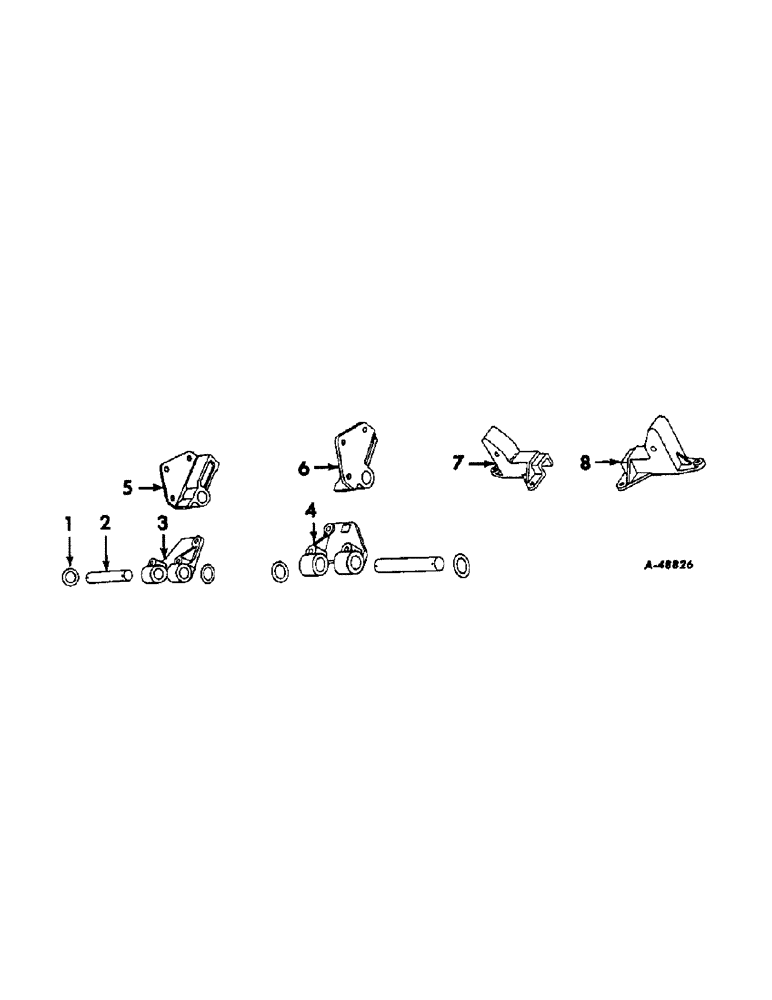

Запчасти Case IH VARIOUS (B-058) - BOX SUPPORTS & HINGE BRACKETS, FOR USE WITH NOS.10&14 PLATFORMS&BOXES,&NO. 60 POWER UNLOADING WAGON

458189R91

BOX SUPPORTS AND HINGE BRACKETS, For use with nos. 10 and 14 platform and boxes, and no. 60 power unloading wagon, Consists of the following:

1шт.

1

Q121

WASHER

1-9/32 ID x 2 OD x 16 ga plain

4шт.

2

453763R1

PIN, hinge

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

3

455228R2

BRACKET, left hinge axle

1шт.

4

455229R2

BRACKET, right hinge axle

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13UNC x 1-1/2 cd-pltd hex-hd mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13UNC x 2-3/4 cd-pltd hex-hd mach

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

3шт.

5

455225R1

BRACKET, left hinge box

1шт.

6

455226R1

BRACKET, right hinge box

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13UNC x 1-1/4 c-z hex-hd mach

3шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

3шт.

7

455221R1

SUPPORT, left front box

1шт.

8

455222R1

SUPPORT, right front box

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13UNC x 1-1/4 cd-pltd hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13UNC x 1-1/2 cd-pltd hex-hd mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13UNC x 2-3/4 cd-pltd hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC c-z hex. lock

3шт.
