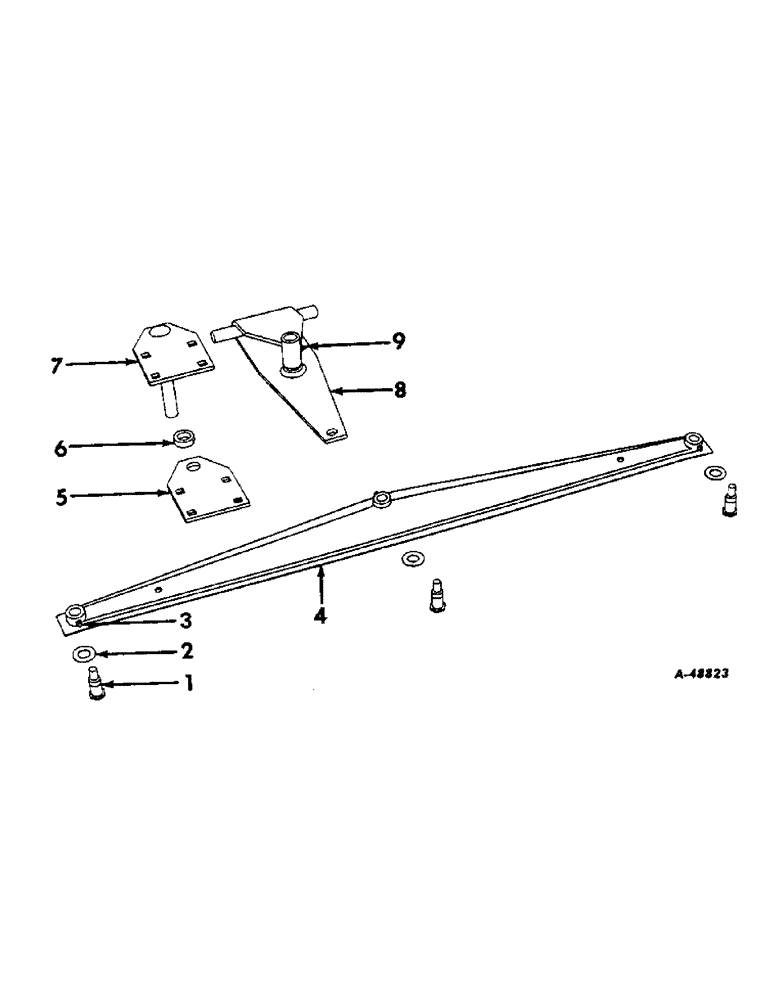

Запчасти Case IH VARIOUS (B-056) - STEERING DRAFT BRACKET, TIE BAR AND FRONT AXLE HITCH PARTS

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

3шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

3шт.

2

615196R1

WASHER

29/32 ID x 1-3/4 OD x 11 ga plain

3шт.

3

19230R91

FITTING, 5/16 straight lub, Serial Range: 1950-1960

3шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self-tapping straight lub

3шт.

4

453745R92

TIEBAR, steering

1шт.

5

457951R1

PLATE, front axle hitch

2шт.

6

12951L

COLLAR, hitch plate shaft

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q3516

PIN

1/4 x 2 dld std-hd

1шт.

7

457951R11

PLATE, front axle hitch

1шт.

19703R1

BOLT, 5/8-11UNC x 1-1/4 cd-pltd crg

8шт.

458188R1

NUT

5/8-11NC hex. lock

8шт.

8

457947R11

BRACKET, steering draft

1шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.
