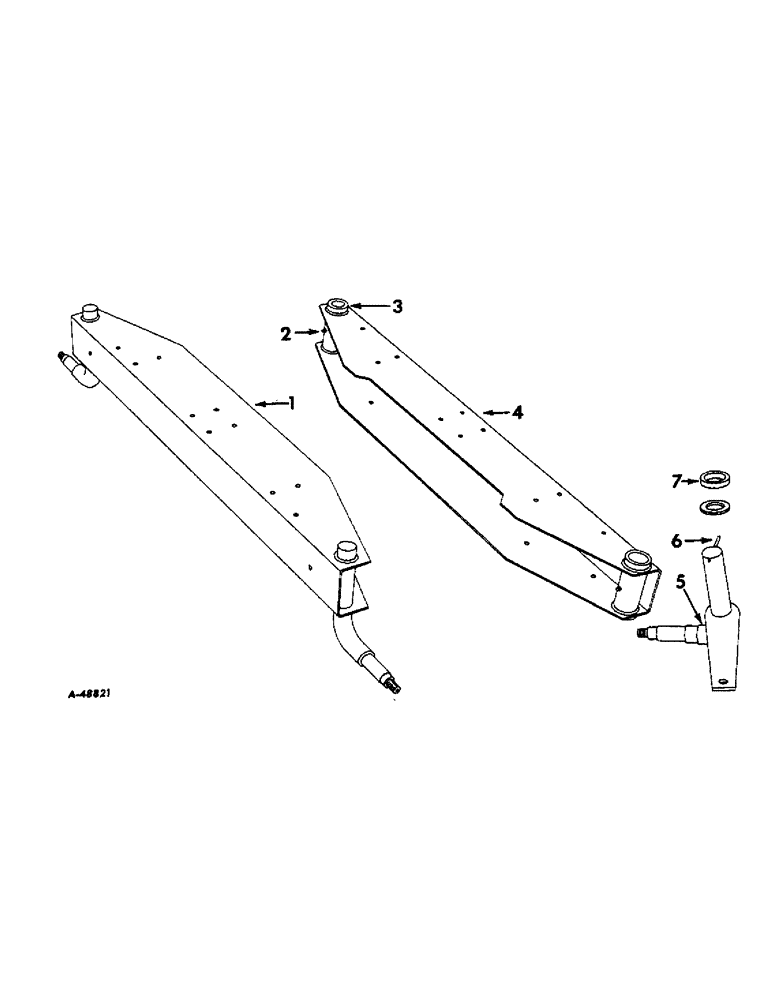

Запчасти Case IH VARIOUS (B-054) - AXLE FRAMES AND SPINDLES

1

457942R21

FRAME W/AXLES, rear

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13UNC x 1 cd-pltd hex-hd mach

6шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13UNC x 1-1/4 cd-pltd hex-hd cap

8шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC cd-pltd hex. lock

8шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-14UNF slt-hex.

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

446265

WASHER, 15/16 ID x 2 OD x 8 ga plain

2шт.

Q5035

WASHER

17/32 ID x 1-1/4 OD x 16 ga plain

2шт.

38971H

WASHER, 17/32 ID x 1-3/4 OD x 11 ga plain

2шт.

462878R1

WASHER, .531 x 1.12 x 6 ga, Case hardened

2шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , 1950 to 1960 1/8"-27 x .66 lg

2шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self-tapping straight lub, 1960 and since

2шт.

3

457957R1

BUSHING, front axle frame

4шт.

4

457939R21

FRAME W/BUSHING ASSY, front axle

6шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13UNC x 1 cd-pltd hex-hd mach

6шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13UNC x 1-1/4 cd-pltd hex-hd cap

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13UNC cd-pltd hex. lock

4шт.

Q5035

WASHER

17/32 ID x 1-1/4 OD x 16 ga plain

2шт.

38971H

WASHER, 17/32 ID x 1-3/4 OD x 11 ga plain

2шт.

462878R1

WASHER, .531 x 1.12 x 6 ga, Case hardened

2шт.

5

457944R91

SPINDLE ASSY, left front axle

1шт.

5

457945R91

SPINDLE ASSY, right front axle

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-14UNF slt-hex.

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

446265

WASHER, 15/16 ID x 2 OD x 8 ga plain

1шт.

Q1437

WASHER, 1-31/32 ID x 2-1/2 OD x 18 ga plain

2шт.

6

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

2шт.

7

457958R1

WASHER, thrust

4шт.
