Заказать запчасти

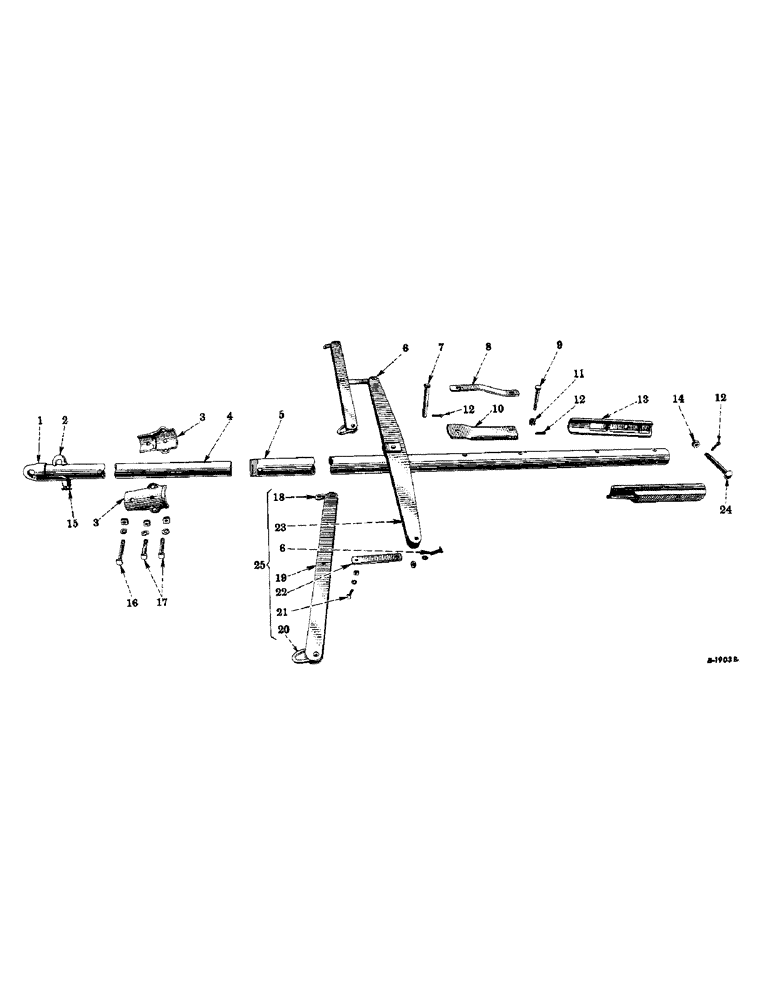

Запчасти Case IH VARIOUS (A-10) - STEEL TONGUE AND DOUBLETREES, SPECIAL
№
Артикул
Название
Примечание
Количество
ZMB423
STEEL, tongue, special, machine attachment
1шт.
1
645W
CAP, front tongue
1шт.
2
MA992
BOLT, tongue hook
1шт.
105608
NUT
1/2-13NC square
1шт.
3
694W
COLLAR, tongue splice
2шт.
13358R11
BOLT W/NUT, 7/16-14NC x 2-1/4 mach
4шт.
13432R11
BOLT W/NUT, 7/16-14NC x 3-1/4 mach
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
6шт.
4
16363WA
TONGUE, steel
1шт.
5
16703W
TONGUE, stub
1шт.
6
15040R11
BOLT (SPREADER)
BOLT W/NUT, 7/16-14NC x 1-1/2 crg
2шт.
7
Q1430
PIN, 5/8 x 5-3/8 dld, std-hd
1шт.
8
13408S
STRAP, hammer, will work for 16531W
1шт.
9
450653R1
BOLT, 1/2-13NC x 3-1/2 hex-hd dld nut
1шт.
L64
NUT
1/2-13NC horned
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
Q1430
PIN, 5/8 x 5-3/8 dld, std-hd
1шт.
10
16730W
SUPPORT, doubletree
1шт.
11
L64
NUT
1/2-13NC horned
1шт.
12
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
13
691W
ADAPTER, stub tongue
2шт.
14
M153M
NUT
5/8-11NC horned
1шт.
16
13432R11
BOLT W/NUT, 7/16-14NC x 3-1/4 mach
2шт.
17
13358R11
BOLT W/NUT, 7/16-14NC x 2-1/4 mach
4шт.
18
ST1025
HOOK, right singletree
2шт.
19
ST1041
SINGLETREE W/HOOKS, ST1025 and ST1035
2шт.
13270R11
BOLT W/NUT, 3/8-16NC x 1-1/4 mach
2шт.
14332R1
RIVET, 3/8 x 1-1/16 rd-hd
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
20
ST1035
HOOK, left singletree
2шт.
21
13270R11
BOLT W/NUT, 3/8-16NC x 1-1/4 mach
2шт.
22
ST1027
STRAP, singletree
2шт.
23
ST1133
DOUBLETREE, 41 in. long
1шт.
15040R11
BOLT (SPREADER)
BOLT W/NUT, 7/16-14NC x 1-1/2 crg
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
24
Q3841
BOLT, 5/8-11NC x 6-1/8 dld crg, draft bracket and tongue connection
1шт.
M153M
NUT
5/8-11NC horned
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
25
ST1132
DOUBLETREE W/SINGLETREE ASSY
1шт.
Выбрано товаров: 41
