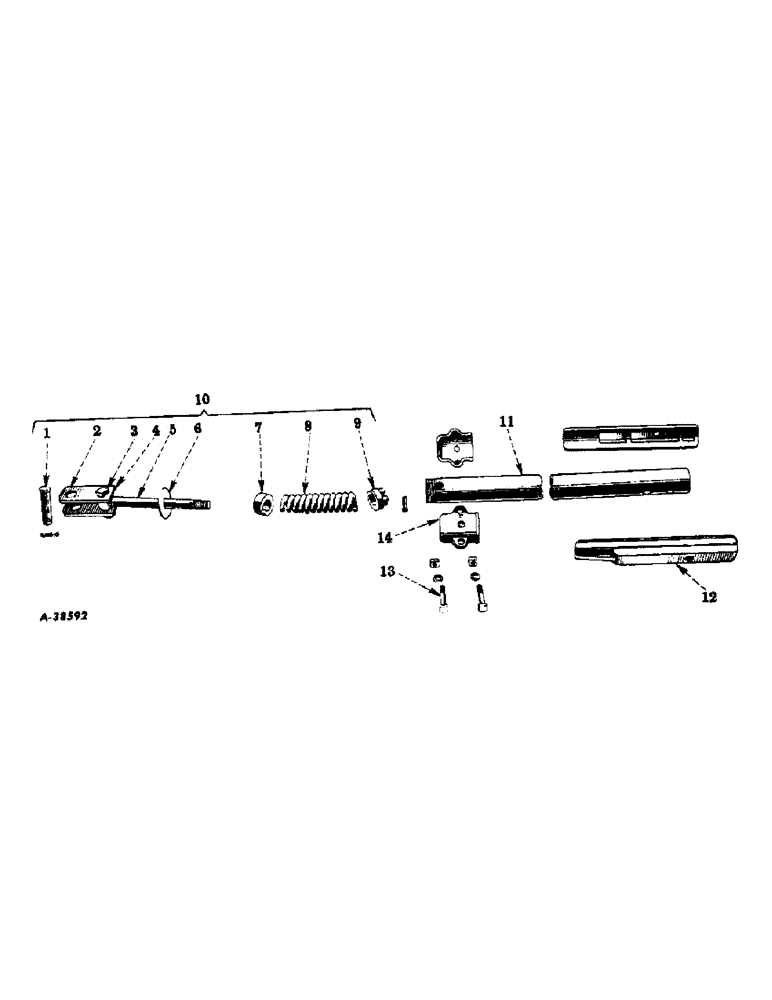

Запчасти Case IH VARIOUS (B-050) - STUB TONGUE TRACTOR HITCH, SPECIAL

ZMA422

STUB TONGUE HITCH , Consist of the following:

1шт.

1

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 2-1/2 std-hd dld, Use when Q3459 bolt will not work

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

2

16134WA

PLATE, clevis

2шт.

3

17611R1

BOLT, 5/8-11UNC x 3-1/2 hex-hd dld mach

1шт.

Q3459

BOLT, 7/8-9UNC x 3-1/2 sq-hd dld mach

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11UNC hex. slotted

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

4

16612W

BUSHING, coupling rod

1шт.

5

16611WA

ROD, coupling

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

6

16731WA

WASHER, coupling rod

1шт.

7

675W

GUIDE, coupling rod

1шт.

8

E766F

SPRING, tongue hitch, 12 coils

1шт.

9

693W

NUT, coupling rod

1шт.

10

16880W

ROD ASSEMBLY, coupling

1шт.

11

16703W

TONGUE, stub

1шт.

12

455233R1

ADAPTER, stub tongue

2шт.

13

17549R11

BOLT

W/NUT, 7/16-14UNC x 2-1/4 hex-hd mach

2шт.

14

692W

CAP, coupling rod

2шт.

17549R11

BOLT

W/NUT, 7/16-14UNC x 2-1/4 hex-hd mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
