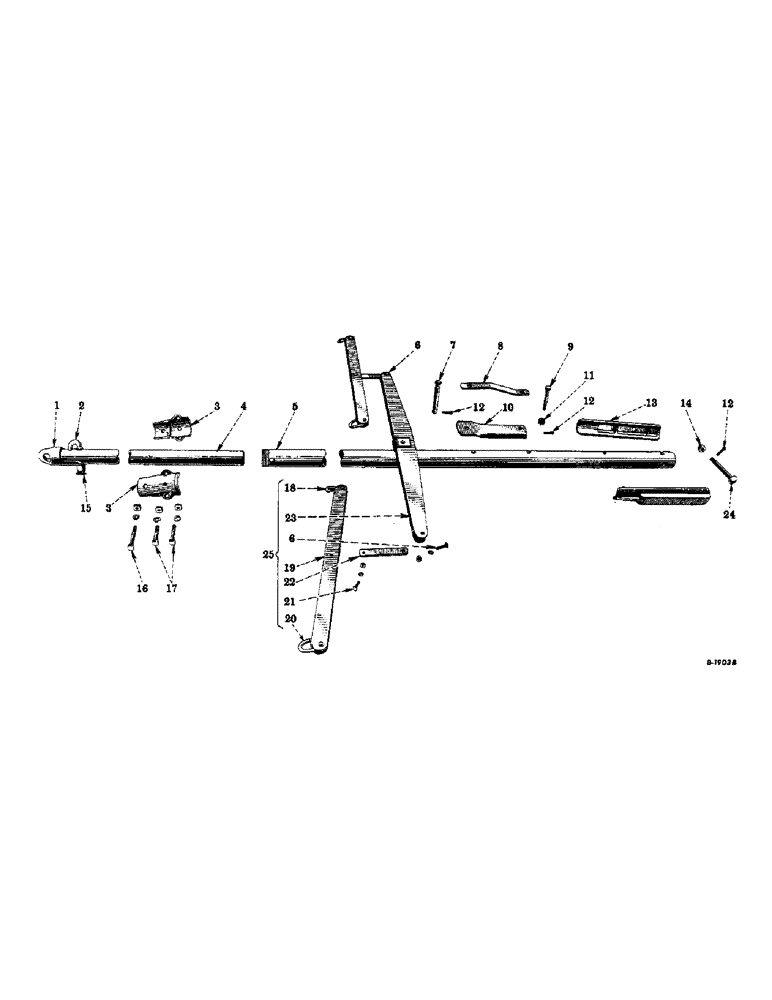

Запчасти Case IH VARIOUS (B-049) - STEEL TONGUE AND DOUBLETREE, SPECIAL

ZMB423

STEEL TONGUE, special, Consists of the following:

1шт.

1

645W

CAP, tongue

1шт.

2

MA992

HOOKBOLT, tongue

1шт.

102637

NUT,1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

694W

COLLAR, tongue splice

2шт.

17575R11

BOLT

W/NUT, 7/16-14UNC x 2-1/4 hex-hd mach

2шт.

17649R11

BOLT

W/NUT, 7/16-14UNC x 3-1/4 hex-hd mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

4

16363WA

TONGUE, steel

1шт.

5

16703W

TONGUE, steel

1шт.

6

15040R11

BOLT (SPREADER)

BOLT W/NUT, 7/16-14UNC x 1-1/2 crg

2шт.

7

Q1430

PIN, 5/8 x 5-3/8 std-hd dld

1шт.

8

13408S

STRAP, hammer

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13UNC hex. slotted

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1430

PIN, 5/8 x 5-3/8 std-hd dld

1шт.

9

450653R1

SCREW, 1/2-13UNC x 3-1/2 hex-hd cap

1шт.

10

16730W

SUPPORT, doubletree

1шт.

11

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13UNC hex. slotted

1шт.

12

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

13

455233R1

ADAPTER, stub tongue

2шт.

14

M153M

NUT

5/8-11UNC horned

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

16

17649R11

BOLT

W/NUT, 7/16-14UNC x 3-1/4 hex-hd mach

1шт.

17

17575R11

BOLT

W/NUT, 7/16-14UNC x 2-1/4 hex-hd mach

2шт.

18

ST1025

HOOK, singletree right

2шт.

14332R1

RIVET, 3/8 x 1-1/16 rd-hd

1шт.

19

ST1041

SINGLETREE ASSEMBLY, Composed of:

2шт.

ST1025

HOOK

1шт.

ST1035

HOOK

1шт.

ST1002

SINGLETREE (NSS)

1шт.

20

ST1035

HOOK, singletree left

2шт.

14332R1

RIVET, 3/8 x 1-1/16 rd-hd

1шт.

21

17446R11

BOLT

W/NUT, 3/8-16UNC x 1-1/4 hex-hd mach

2шт.

22

ST1027

STRAP, singletree

2шт.

17446R11

BOLT

W/NUT, 3/8-16UNC x 1-1/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

ST1133

DOUBLETREE

1шт.

15040R11

BOLT (SPREADER)

BOLT W/NUT, 7/16-14UNC x 1-1/2 crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

24

Q3841

BOLT, 5/8-11NC x 6-1/2 dld crg

1шт.

M153M

NUT

5/8-11NC horned

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

25

ST1132

DOUBLETREE W/SINGLETREE ASSEMBLY

1шт.
