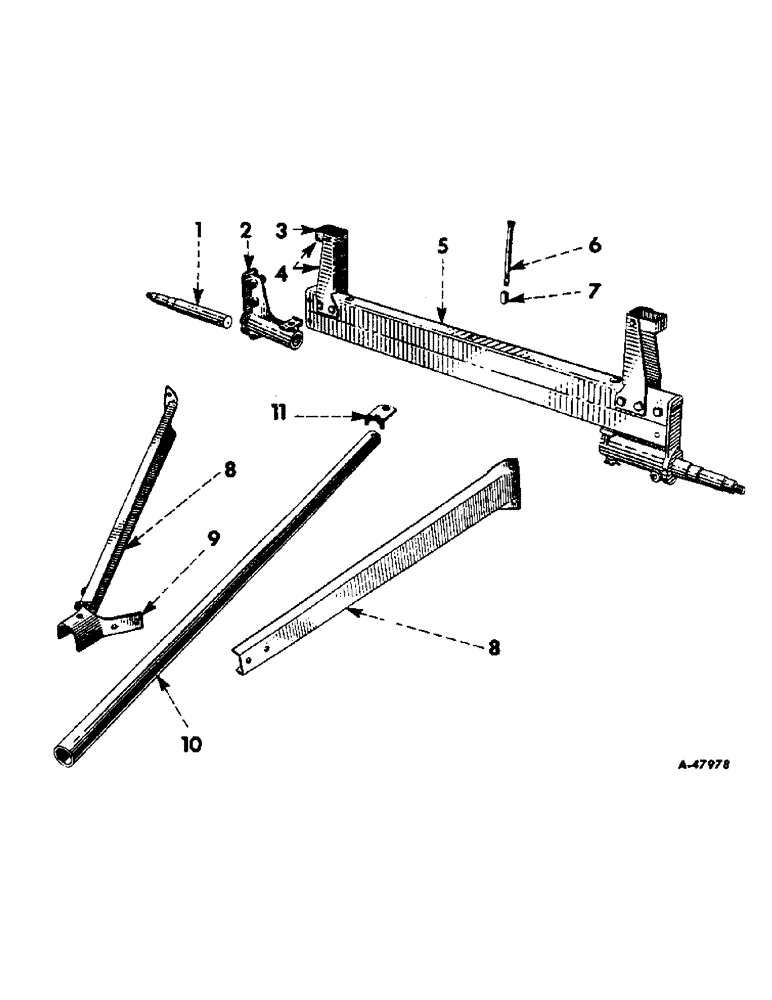

Запчасти Case IH VARIOUS (B-045) - CHASSIS, REAR END

1

456110R1

AXLE, rear stub

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16UNF hex. slotted

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

103346

WASHER

13/16 ID x 1-1/2 OD x 10 ga plain

2шт.

2

456114R1

HOLDER, rear axle

2шт.

3

16699W

RING, stake

2шт.

104196

RIVET, 3/8 x 7/8 x 90 deg csk-hd

4шт.

4

16696W

STAKE W/RING

2шт.

17675R11

BOLT W/NUT, 1/2-13UNC x 3-1/2 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

459067R91

CHANNEL, rear axle

1шт.

17650R11

BOLT

W/NUT, 1/2-13UNC x 3-1/4 hex-hd mach

2шт.

15750R1

BOLT, 5/8-11UNC x 11 no. 3 hd plow

2шт.

458188R1

NUT

5/8-11UNC hex. lock

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

15749R1

BOLT, 5/8-11UNC x 10 no. 3 hd plow, rear breach

1шт.

458188R1

NUT

5/8-11UNC hex. lock

1шт.

7

16671W

SPACER, rear breach

1шт.

8

16726WA

HOUND, rear

2шт.

17427R11

BOLT

W/NUT, 7/16-14UNC x 1 hex-hd mach

4шт.

17675R11

BOLT W/NUT, 1/2-13UNC x 3-1/2 hex-hd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

16725W

BRACE, rear breach

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

16721W

PIPE, rear reach

1шт.

11

16672W

HITCH, rear axle

1шт.
