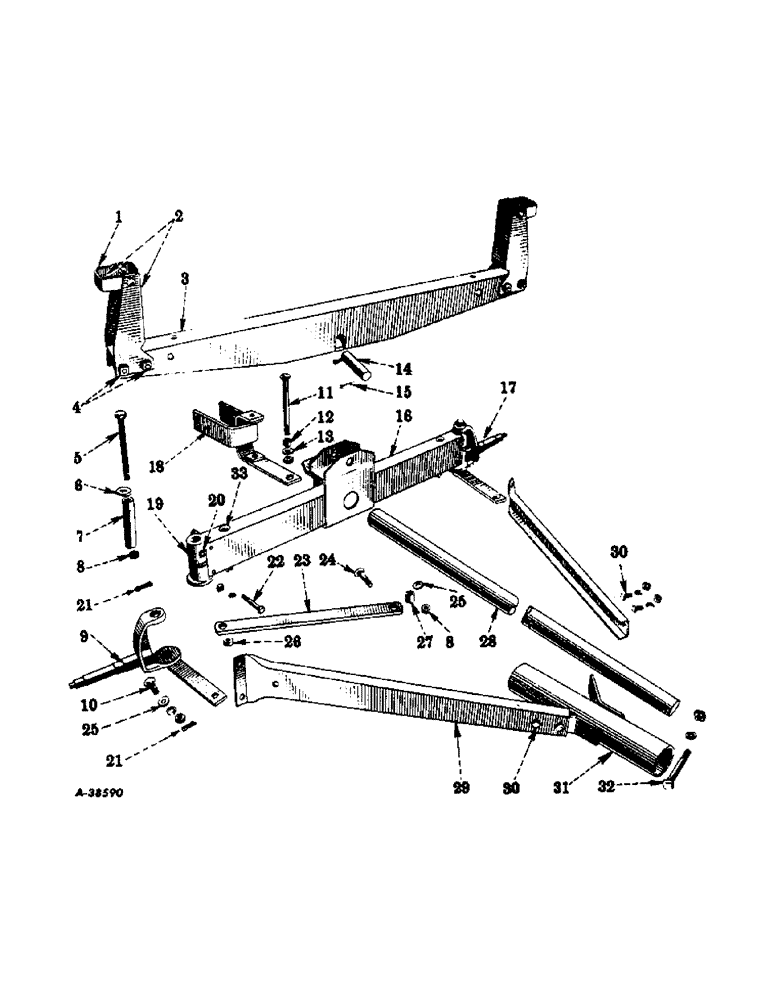

Запчасти Case IH VARIOUS (B-043) - CHASSIS, FRONT END

1

16699W

RING, stake

2шт.

104196

RIVET, 3/8 x 7/8 x 90 deg csk-hd

4шт.

2

16696W

STAKE W/RING

2шт.

17675R11

BOLT W/NUT, 1/2-13UNC x 1-1/2 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

16692WB

BOLSTER, floating

1шт.

4

17675R11

BOLT W/NUT, 1/2-13UNC x 1-1/2 hex-hd mach

4шт.

5

Q5032

SCREW, 5/8-11UNC x 8 hex-hd dld cap

2шт.

6

16744W

WASHER

SPACER, spindle

2шт.

7

16658WA

SPACER, front spindle yoke

2шт.

8

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11UNC hex. slotted

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q5032

SCREW, 5/8-11UNC x 8 hex-hd dld cap

2шт.

9

456111R91

SPINDLE ASSY, left front

1шт.

10

Q3845

BOLT, 5/8-11UNC x 1-3/4 dld crg

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11UNC hex. slotted

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-10UNC hex. slotted

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga plain

1шт.

103346

WASHER

13/16 ID x 1-1/2 OD x 10 ga plain

1шт.

11

459073R1

KING PIN, draft bracket, special crg bolt

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10UNC hex. slotted

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

Q3698

WASHER

3/4 ID x 2 OD x 11 ga

1шт.

12

16648W

BUSHING, steering yoke support

1шт.

13

Q3698

WASHER

3/4 ID x 2 OD x 11 ga

1шт.

14

16695W

PIN, bolster

1шт.

15

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

16

459066R91

CHANNEL, front axle

1шт.

15314R11

BOLT W/NUT, 5/8-11UNC x 5-3/4 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

456112R91

SPINDLE, right front

1шт.

Q3845

BOLT, 5/8-11UNC x 1-3/4 dld crg

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11UNC hex. slotted

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-10UNC hex. slotted

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga plain

1шт.

103346

WASHER

13/16 ID x 1-1/2 OD x 10 ga plain

1шт.

18

459071R91

BRACKET, draft

1шт.

19

459548R1

BEARING, front spindle

2шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

21

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

22

17650R11

BOLT

W/NUT, 1/2-13UNC x 3-1/4 hex-hd mach

4шт.

23

16660W

BAR, steering tie

2шт.

24

Q3844

BOLT, 5/8-11UNC x 2-3/8 dld crg

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11UNC hex. slotted

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga plain

1шт.

25

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga plain

3шт.

26

16662W

BUSHING, tie bar short

2шт.

27

16661W

BUSHING, tie bar long

1шт.

28

16720W

PIPE, front reach

1шт.

29

16675WA

HOUND, front

2шт.

30

17427R11

BOLT

W/NUT, 7/16-14UNC x 1 hex-hd mach

4шт.

17650R11

BOLT

W/NUT, 1/2-13UNC x 3-1/4 hex-hd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

31

16722WA

BRACE, front reach

1шт.

32

17721R11

BOLT W/NUT, 1/2-13UNC x 4 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

33

15314R11

BOLT W/NUT, 5/8-11UNC x 5-3/4 hex-hd mach

2шт.
