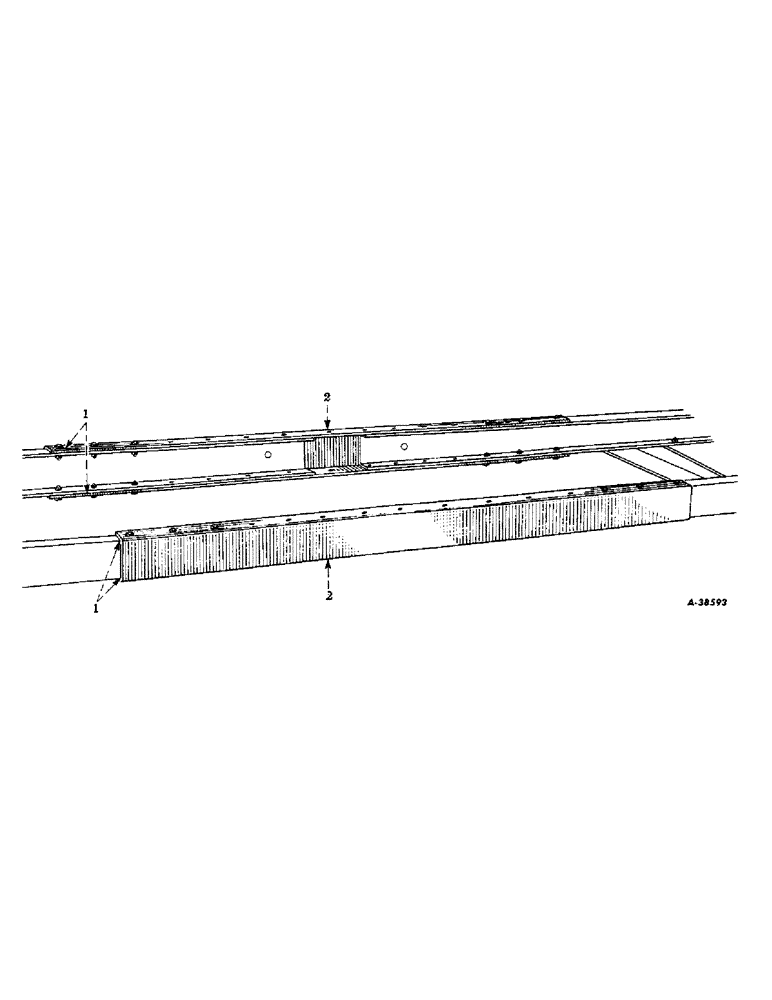

Запчасти Case IH VARIOUS (B-040) - MAIN FRAME SILL EXTENSION, PRODUCT GRAPHICS

1

456189R1

STTIP, filler, Used between splice channel and rear sill

4шт.

2

456188R1

CHANNEL, splice

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13NC x 1 hex-hd mach

24шт.

455388R1

NUT

1/2-13NC lock

24шт.

1001307R1

PRODUCT GRAPHIC

McCormick, on rear axle bracket

1шт.
