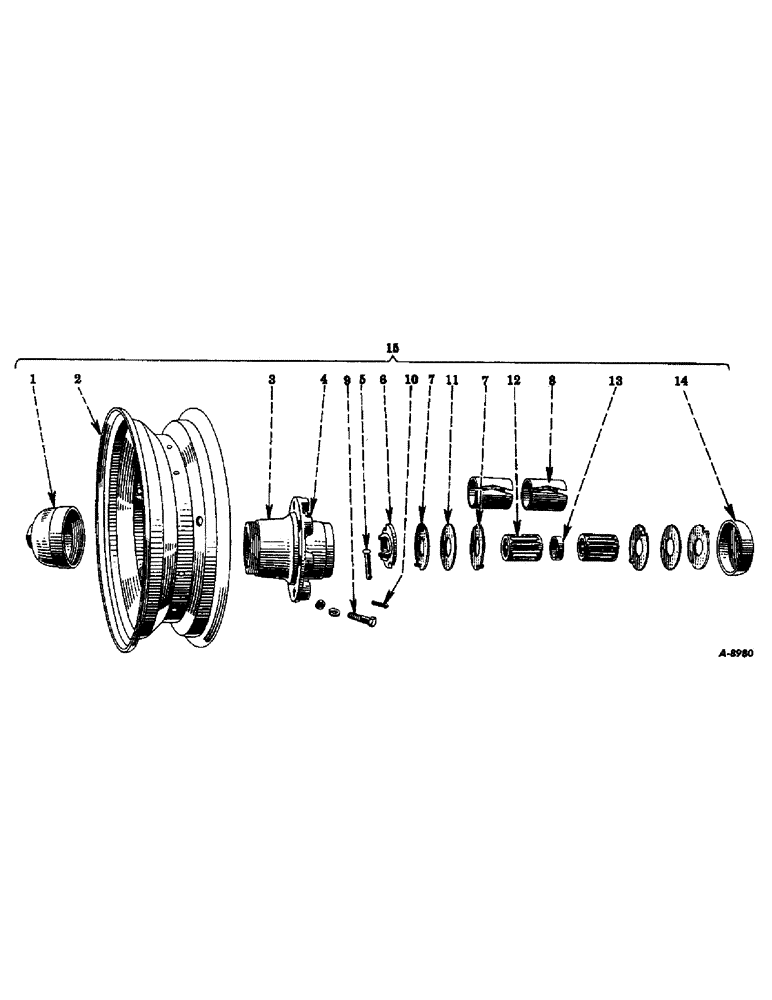

Запчасти Case IH VARIOUS (A-09) - PNEUMATIC TIRE WHEELS, SPECIAL

1

687WA

CAP

wheel hub

4шт.

2

16632W

DISC AND RIM, wheel, For 6.00, 6.50 or 7.00 x 16 tires, Serial Range: 1940-1950

4шт.

2

16712W

DISC AND RIM, wheel, For 7.50 x 16 tire, Serial Range: 1940-1950

4шт.

2

453631R91

DISC AND RIM, wheel, For 6.00, 6.40 or 6.70 x 15 tires, 1950 and since

4шт.

3

690W

HUB, disc wheel

4шт.

450634R1

SCREW, 7/16-20NF x 1-3/4 hex-hd cap

8шт.

450635R1

NUT

7/16-20NF hex

8шт.

450636R1

WASHER, 7/16 lock

8шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lub

4шт.

5

16687W

PIN, wheel adjustment

4шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

4шт.

6

686W

WASHER, wheel adjustment

4шт.

7

16685W

THRUST WASHER

wheel thrust

16шт.

8

451898R1

RACE

roller bearing

8шт.

9

450634R1

BOLT, 7/16-20NF x 1-3/4 hex-hd

8шт.

10

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

4шт.

11

16686W

WASHER

wheel wearing

8шт.

12

16682W

BEARING

roller

8шт.

13

16683W

SPACER

wheel bearing

4шт.

14

16684W

CAP, sand

4шт.

15

16705W

WHEEL

ASSY, pneumatic tire, less tire and tube, For 6.00 or 7.00 x 16 tires, Serial Range: 1940-1950

4шт.

15

17053W

WHEEL ASSY, pneumatic tire, less tire and tube, For 7.50 x 16 tires, Serial Range: 1940-1950

4шт.

15

453635R91

WHEEL ASSY, pneumatic tire, less tire and tube, For 6.00, 6.40 or 6.70 x 15 tires, 1950 and since

4шт.
