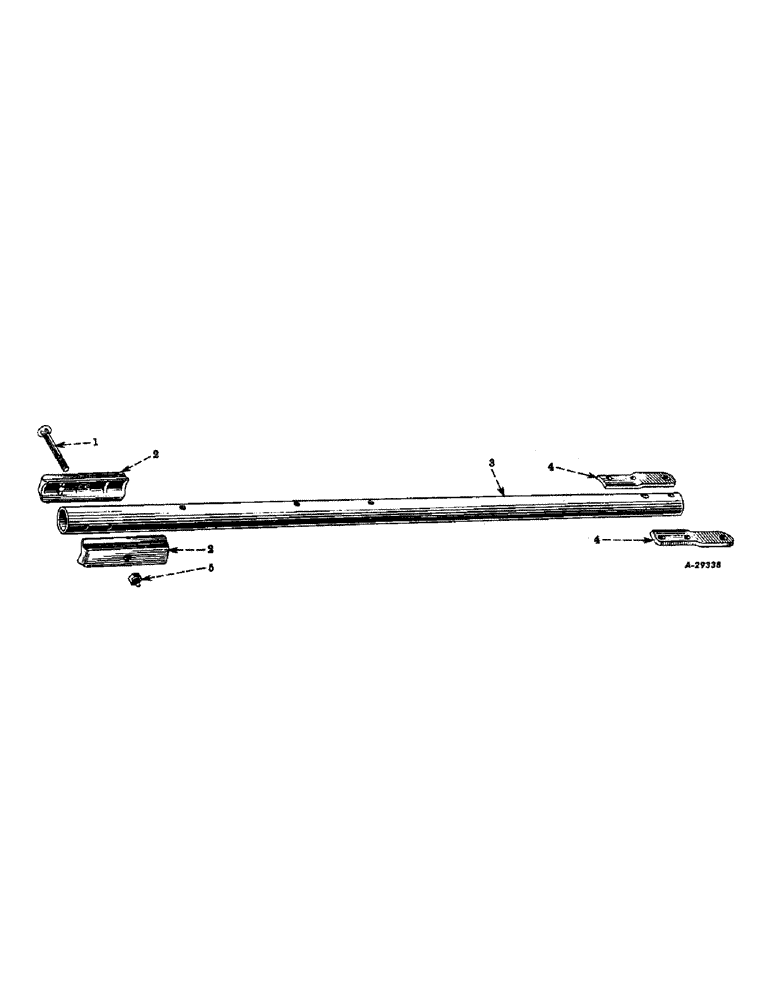

Запчасти Case IH VARIOUS (B-038) - TONGUE

455243R91

TONGUE ASSEMBLY, Consists of the following:

1шт.

1

12619R1

BOLT, 5/8-11NC x 6 dld crg bolt draft bracket tongue, 1952 and 1953

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

53324H

WASHER

21/32 ID x 1-5/8 OD x 11 ga plain

1шт.

1

17179R1

BOLT, 5/8-11NC x 5-1/2 dld crg bolt draft bucket tongue, 1953 and since

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

455233R1

ADAPTER, tongue

2шт.

3

455237R1

TONGUE

1шт.

4

455236R1

STRAP, tongue hitch

2шт.

17723R11

BOLT

W/NUT, 5/8-11NC x 4 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

427630

PLUG

NUT, 5/8-11NC horned, 1952 and 1953

1шт.

5

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slotted hex., 1953 and since

1шт.
