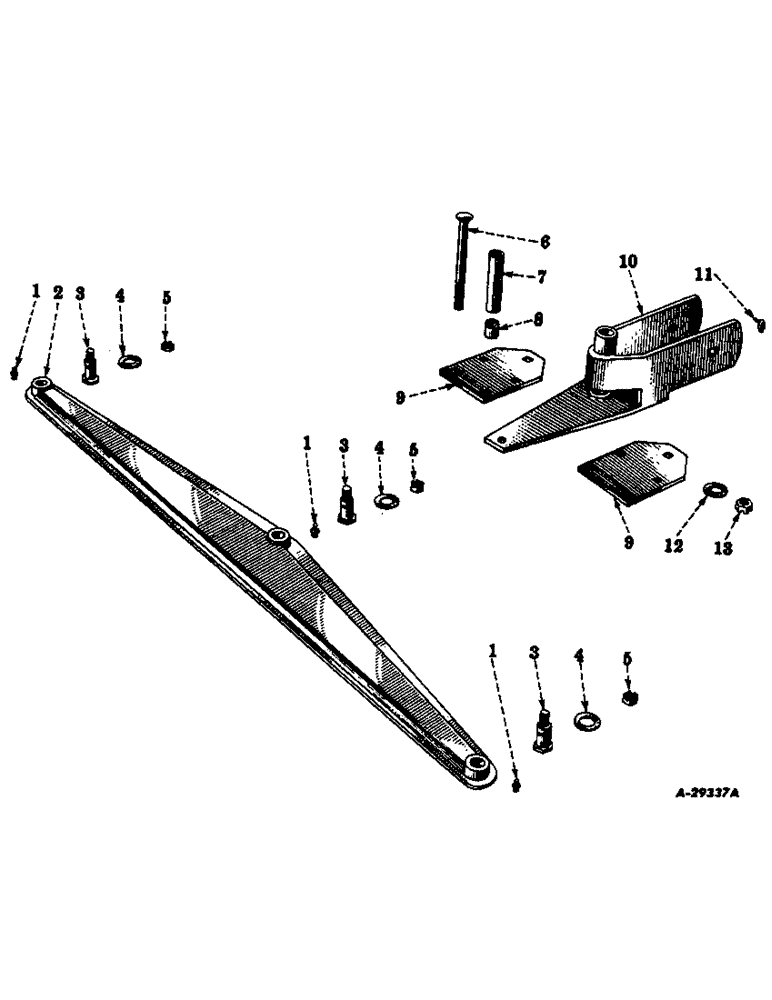

Запчасти Case IH VARIOUS (B-037) - DRAFT BUCKET AND TIE BAR

1

19230R91

FITTING, 5/16 straight lub

3шт.

2

453745R92

TIE BAR

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

3шт.

4

Q312

WASHER

29/32 ID x 1-3/4 OD x 11 ga plain

3шт.

5

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

3шт.

6

17033R1

BOLT, 3/4-10NC x 8 dld crg bolt draft bracket king

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 ID x 1-1/2 OD x 10 ga plain

1шт.

7

455214R1

BUSHING, draft bracket bearing

1шт.

8

453732R1

BUSHING, draft bracket arm

1шт.

9

455220R1

STRAP, front axle hitch

2шт.

15025R11

BOLT,1/2" - 13 x 1 1/4"

1/2-13NC x 1-1/4 crg

8шт.

455388R1

NUT

1/2-13NC lock

8шт.

10

455212R92

BRACKET, draft

1шт.

11

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 x 67-1/2 deg lub

1шт.

12

23471S

WASHER

25/32 ID x 1-1/2 OD x 7 ga

1шт.

13

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10NC slotted hex.

1шт.
