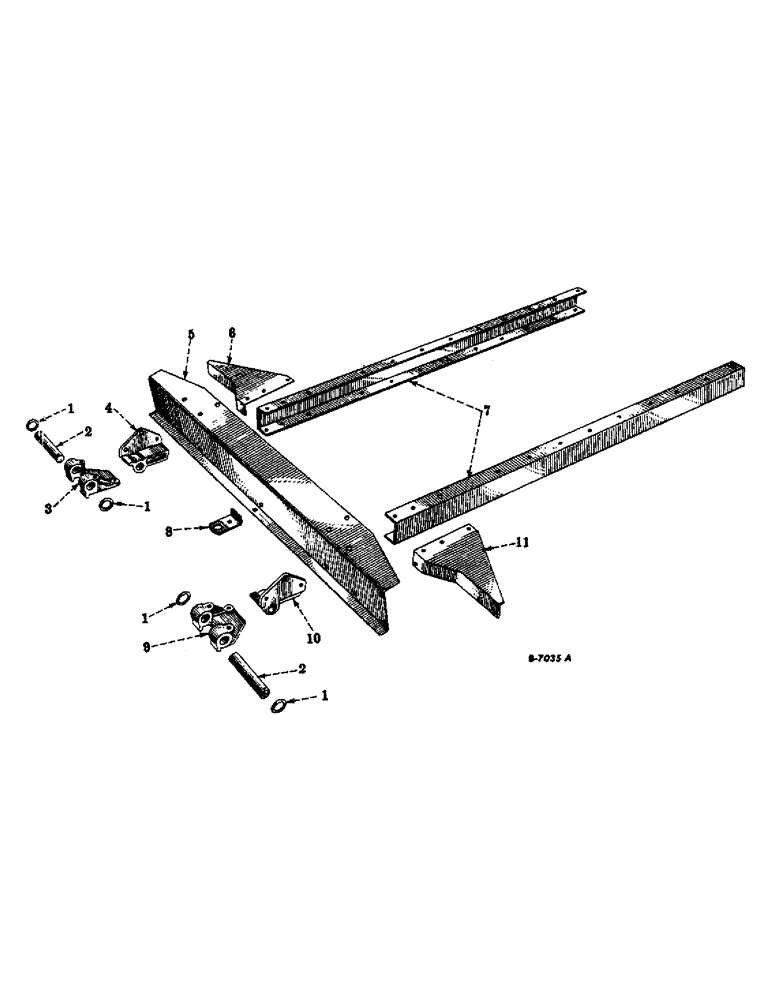

Запчасти Case IH VARIOUS (B-036) - REAR FRAME AND AXLE BRACKET

1

Q121

WASHER

1-9/32 ID x 2 OD x 16 ga plain

4шт.

2

453763R1

PIN, hinge, See note

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

3

455228R2

BRACKET, left hinge axle, See note

1шт.

17627R1

BOLT

1/2-13NC x 3 hex-hd mach

1шт.

17721R1

BOLT, 1/2-13NC x 4 hex-hd mach

1шт.

455388R1

NUT

1/2-13NC lock

2шт.

4

455225R1

BRACKET, left hinge box, See note

1шт.

5

455227R2

BRACKET, rear axle

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13NC x 1 hex-hd mach

3шт.

17650R1

BOLT, 1/2-13NC x 3-1/4 hex-hd mach

2шт.

17675R1

BOLT, 1/2-13NC x 3-1/2 hex-hd mach

4шт.

455388R1

NUT

1/2-13NC lock

9шт.

6

455230R1

SUPPORT, left rear axle and sill

1шт.

7

455235R1

SILL, rear frame

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13NC x 1 hex-hd mach

8шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2-13NC x 1-1/2 hex-hd mach

2шт.

455388R1

NUT

1/2-13NC lock

10шт.

8

455224R1

HITCH, rear axle

1шт.

9

455229R2

BRACKET, right hinge axle, See note

1шт.

17627R1

BOLT

1/2-13NC x 3 hex-hd mach

1шт.

17721R1

BOLT, 1/2-13NC x 4 hex-hd mach

1шт.

455388R1

NUT

1/2-13NC lock

2шт.

10

455226R1

BRACKET, right hinge box, See note

1шт.

11

455231R1

SUPPORT, right rear axle and sill

1шт.
