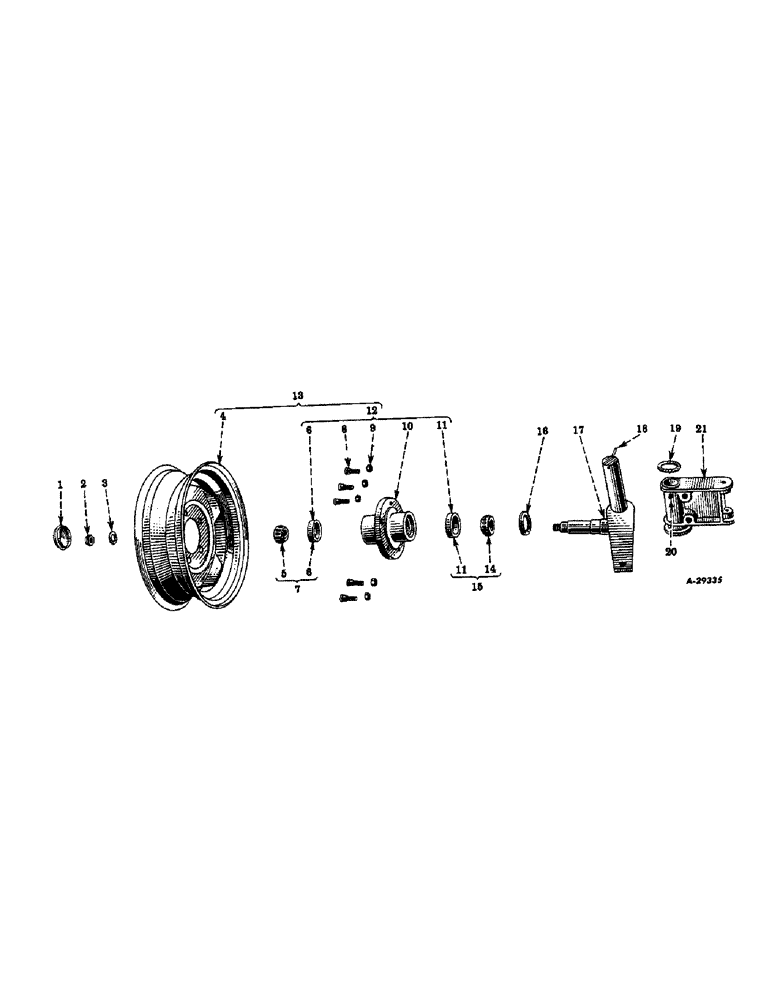

Запчасти Case IH VARIOUS (B-034) - FRONT WHEEL, LEFT AND RIGHT, FOR USE WITH PNEUMATIC TIRE

1

453771R1

PLUG

CAP, wheel hub

2шт.

2

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16NF slotted hex.

2шт.

3

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 ID x 1-1/2 OD x 10 ga plain

2шт.

4

453767R92

DISC AND RIM, pneumatic wheel, Optional w/456599R91 and 456600R91

2шт.

4

456599R91

DISC AND RIM, pneumatic wheel, Optional w/456600R91 and 453767R92

2шт.

4

455458R91

DISC AND RIM, pneumatic wheel, For 16 inch pneumatic tire, special, 1953 and since

2шт.

4

456600R91

RIM

DISC AND RIM, pneumatic wheel, Optional with 456599R91 and 453767R92

2шт.

5

350808R91

CONE

outer wheel bearing

2шт.

6

54630H

BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"

CUP, outer wheel bearing

2шт.

7

BEARING ASSY, outer wheel, Not serviced order 350808R91 cone and 54630H cup

2шт.

8

453769R21

BOLT

W/NUT 453770R1, 1/2-20NF x 1-5/8 special head and body, wheel

10шт.

9

453770R1

WHEEL NUT

1/2-20NF cone shaped wheel bolt

10шт.

10

HUB, wheel, Order 453764R22 hub assy

1шт.

11

453012R1

BEARING CUP

CUP, inner wheel bearing

2шт.

12

453764R22

HUB ASSY, wheel

2шт.

13

453765R94

WHEEL ASSY

2шт.

14

455256R91

ROLLER BEARING,1.5" ID x 2.717" OD x 1.0313"

CONE, inner wheel bearing

2шт.

15

BEARING ASSY, inner wheel, Not serviced Order 455256R91 cone and 453012R1 cup

1шт.

17

455249R92

SPINDLE, left front wheel

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

17

455250R92

SPINDLE, right front wheel

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

18

455257R1

LOCK PIN,3/16" x 2 1/4", Slotted

Pin, 3/16" x 2 1/4", Slotted

2шт.

19

Q3488

WASHER

1-25/32 ID x 2-1/2 OD x 11 ga plain

2шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

21

455253R3

BEARING, front spindle

2шт.
