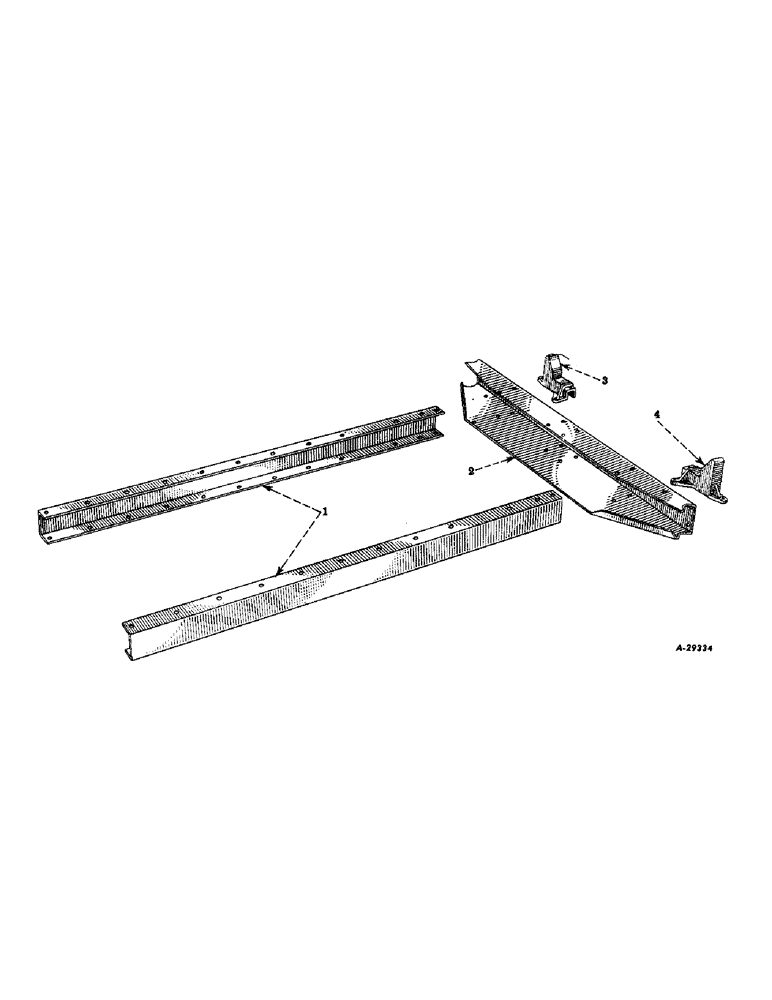

Запчасти Case IH VARIOUS (B-033) - FRONT FRAME SILL AND AXLE CHANNEL

1

455234R1

SILL, front frame

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13NC x 1 hex-hd mach

20шт.

17473R11

BOLT

1/2-13NC x 1-1/2 hex-hd mach

2шт.

455388R1

NUT

1/2-13NC lock

22шт.

2

455218R1

CHANNEL, front axle

1шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

1/2-13NC x 3-3/4 hex-hd mach

4шт.

455388R1

NUT

1/2-13NC lock

4шт.

3

455221R1

STOP AND SUPPORT, left front axle box, See note

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13NC x 2-3/4 hex-hd mach

1шт.

17864R1

BOLT, 1/2-13NC x 5-3/4 hex-hd mach

1шт.

455388R1

NUT

1/2-13NC lock

2шт.

4

455222R1

STOP AND SUPPORT, right front axle box, See note

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13NC x 2-3/4 hex-hd mach

1шт.

17864R1

BOLT, 1/2-13NC x 5-3/4 hex-hd mach

1шт.

455388R1

NUT

1/2-13NC lock

2шт.
