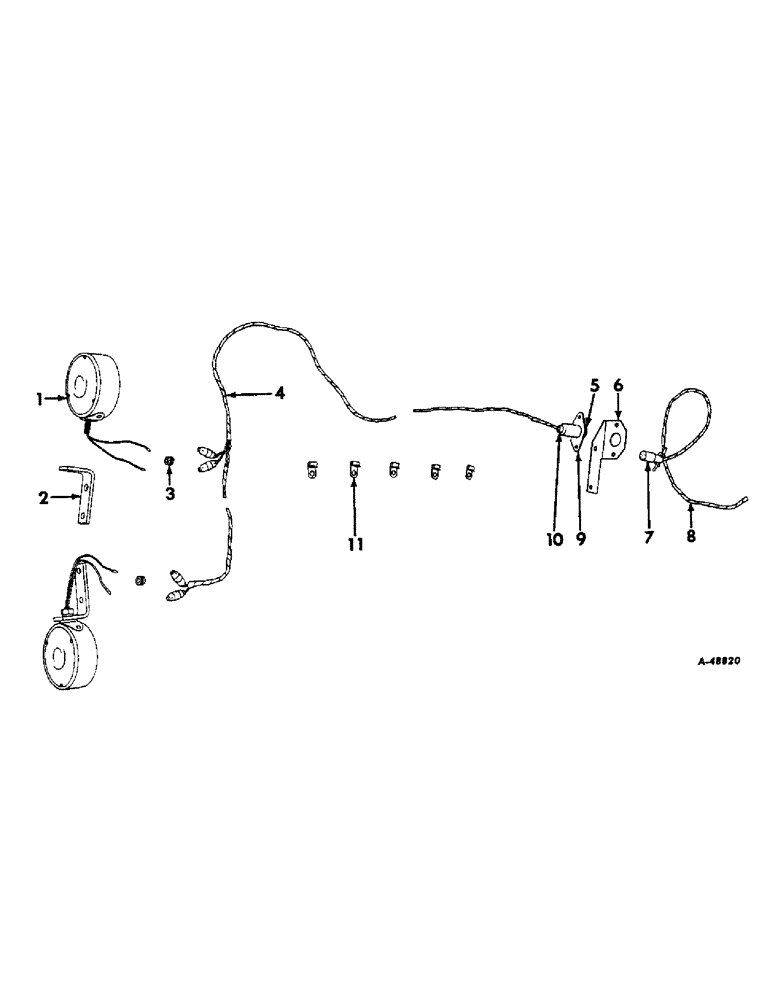

Запчасти Case IH VARIOUS (B-029) - AUTOMOTIVE LIGHTING EQUIPMENT, SPECIAL

459769R91

AUTOMOTIVE LIGHTING EQUIPMENT, special, Consists of the following:

1шт.

1

459905R91

LAMP, stop and turn signal

2шт.

425-107

NUT,7/16"-14, G5

7/16-13UNC hex.

2шт.

45976R91

WASHER, LOCK, 7/16"

2шт.

2

459899R1

BRACKET, tail light

2шт.

17412R11

BOLT

W/NUT, 3/8-16UNC x 3/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

187540

GROMMET 1/4" ID x 5/8" x .125", Diag Cut

2шт.

4

459903R91

CASE ASSEMBLY

1шт.

5

996220R1

COVER, receptacle

1шт.

6

459901R1

BRACKET, receptacle support

1шт.

17410R11

BOLT

BODY W/NUT, 1/4-20UNC x 3/4 hex-hd mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

459904R91

CABLE W/PLUG ASSEMBLY, prime power

1шт.

9

459995R91

RECEPTACLE, female, 6 way

1шт.

10

459996R91

INSERT, 6 way

1шт.

11

61813D

CLIP

cable

5шт.

17412R11

BOLT

W/NUT, 3/8-16UNC x 3/4 hex-hd mach

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

2750170R1

PRODUCT GRAPHIC

MCCORMICK, trademark, Front of frame, on both sides

2шт.

2750211R1

MODEL DESIGNATION, Front of frame, on both sides

2шт.

2750221R1

IH, trademark, Front of fram, on both sides

2шт.

2750226R1

CAUTION, Flanges on right frame, product graphic

1шт.

2750398R1

CAUTION, Spanish, For export only, Flange on right frame, product graphic

1шт.
