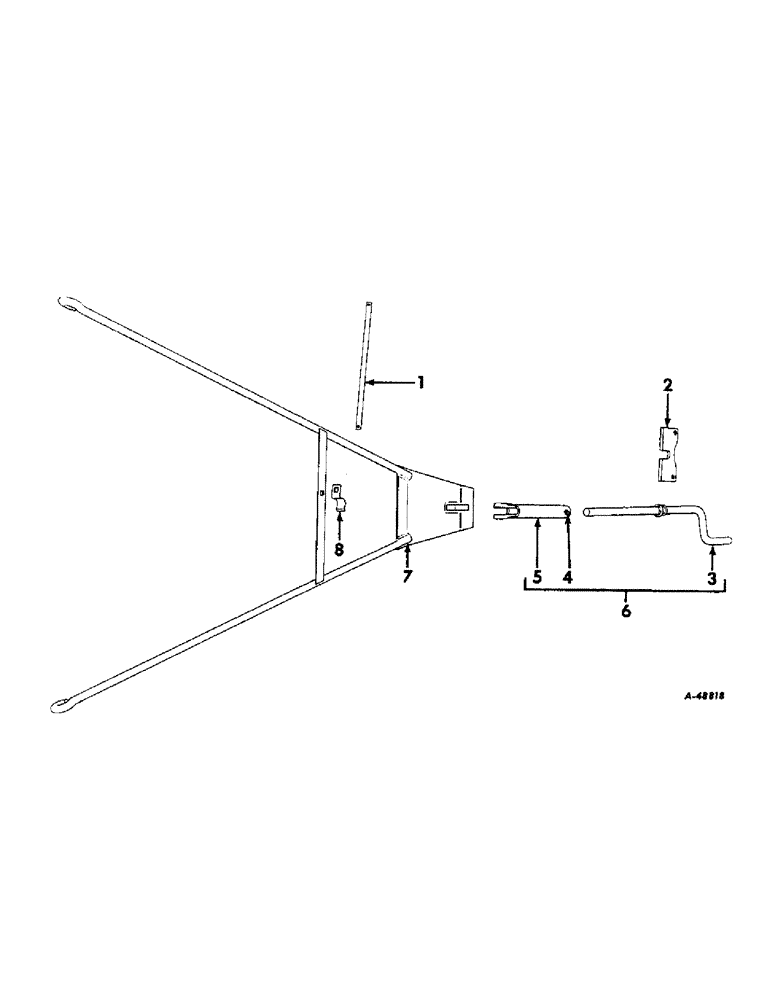

Запчасти Case IH VARIOUS (B-027) - LIFTING JACK ATTACHMENT

1

459898R1

SUPPORT, jack

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

2шт.

2

458537R1

BRACKET, jack support

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2-13 UNC x 1-1/4 hex-hd mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

458519R11

SCREW, lifting jack

1шт.

4

109358

FITTING, 5/16 straight lub

1шт.

5

458520R1

THREADED TIE-ROD

SLEEVE, lifting jack

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

Q1335

AXLE PIN

PIN, 3/4 x 2 std-hd dld

1шт.

6

458518R91

JACK ASSEMBLY

1шт.

7

459887R91

STAND, lifting jack

1шт.

8

458523R1

CLIP, jack handle

1шт.

14995R11

BOLT

W/NUT, 3/8-16UNC x 3/4 crg

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.
