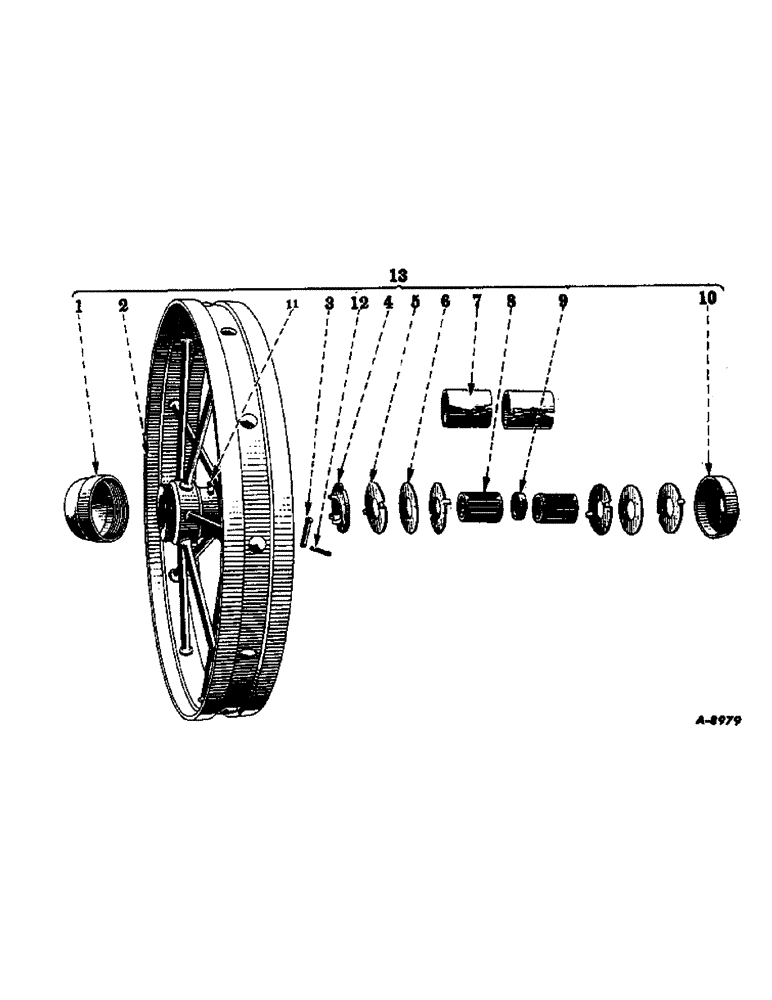

Запчасти Case IH VARIOUS (A-08) - STEEL WHEELS

1

687WA

CAP

wheel hub

4шт.

2

16677W

WHEEL W/BEARING RACES, basic front, 451898R1, 28 in. dia, 4 in. tire

2шт.

2

452651R91

WHEEL W/BEARING RACES, basic front, 451898R1, 28 in. dia, 6 in. tire, special, Serial Range: 1947-1954

2шт.

2

16688W

WHEEL W/BEARING RACES, basic rear, 451898R1, 32 in. dia, 4 in. tire

2шт.

2

452653R91

WHEEL W/BEARING RACES, basic rear, 451898R1, 32 in. dia, 6 in. tire, special, Serial Range: 1947-1954

2шт.

3

16687W

PIN, wheel adjusting

4шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

4шт.

4

686W

WASHER, wheel adjustment

4шт.

5

16685W

THRUST WASHER

wheel thrust

16шт.

6

16686W

WASHER

wheel wearing

8шт.

7

451898R1

RACE

roller bearing

8шт.

8

16682W

BEARING

roller

8шт.

9

16683W

SPACER

wheel bearing

4шт.

10

16684W

CAP, sand

4шт.

11

109350

FITTING, 1/8 x 67-1/2 deg lub

4шт.

12

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

4шт.

13

16678W

WHEEL

ASSY, front, 28 in. dia, 4 in. tire

2шт.

13

452650R91

WHEEL ASSY, front, 28 in. dia, 6 in. tire, special, Serial Range: 1947-1954

2шт.

13

16689W

WHEEL

ASSY, rear, 32 in. dia, 4 in. tire

6шт.

13

452652R91

WHEEL ASSY, rear, 32 in. dia, 6 in. tire, special, Serial Range: 1947-1954

2шт.
