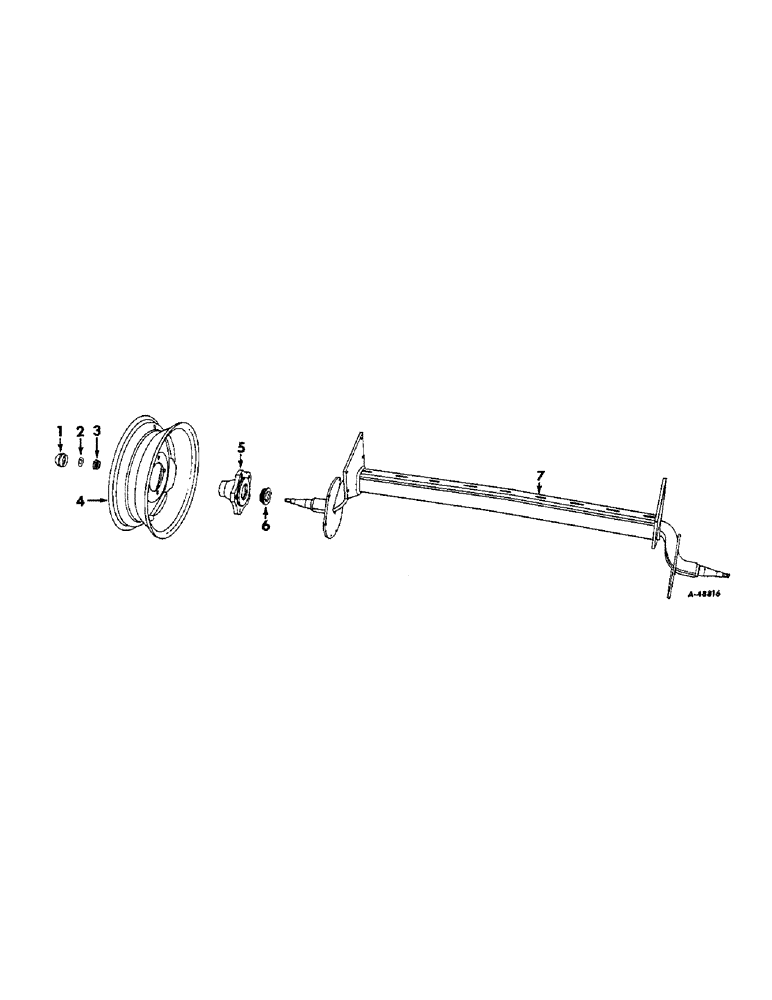

Запчасти Case IH VARIOUS (B-025) - AXLES, HUBS AND WHEELS

1

564404R1

CAP

hub, Order 602959R1

4шт.

1

602959R1

PLUG

CAP, hub

4шт.

2

12258R1

WASHER

21/32 ID x 1-1/4 OD x 11 ga plain

4шт.

3

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING ASSY, wheel outer, Order 651814R1 and 651851R91

4шт.

3

651814R1

BEARING CUP

CUP, outer bearing

4шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer bearing

4шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

4

453767R92

DISC AND RIM, wheel, Optional with 456599R91 and 456600R91

4шт.

4

456599R91

DISC AND RIM, wheel, Optional with 453767R92 and 456600R91

4шт.

4

456600R91

RIM

DISC AND RIM, wheel, Optional with 453767R92 and 456599R91

4шт.

5

459978R11

HUB W/BEARING CUPS, 4 for unit A, 2 for unit B

1шт.

5

459979R11

HUB W/BEARING CUPS, rear, 2 for unit B

1шт.

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel hub

20шт.

453770R1

WHEEL NUT

wheel hub bolt

20шт.

6

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

CONE W/SEAL AND CUP, wheel inner bearing

4шт.

7

459980R91

AXLE, 2 for unit A, 1 for unit B

1шт.

7

459981R91

AXLE, rear, 1 for unit B

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

4шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

4шт.
