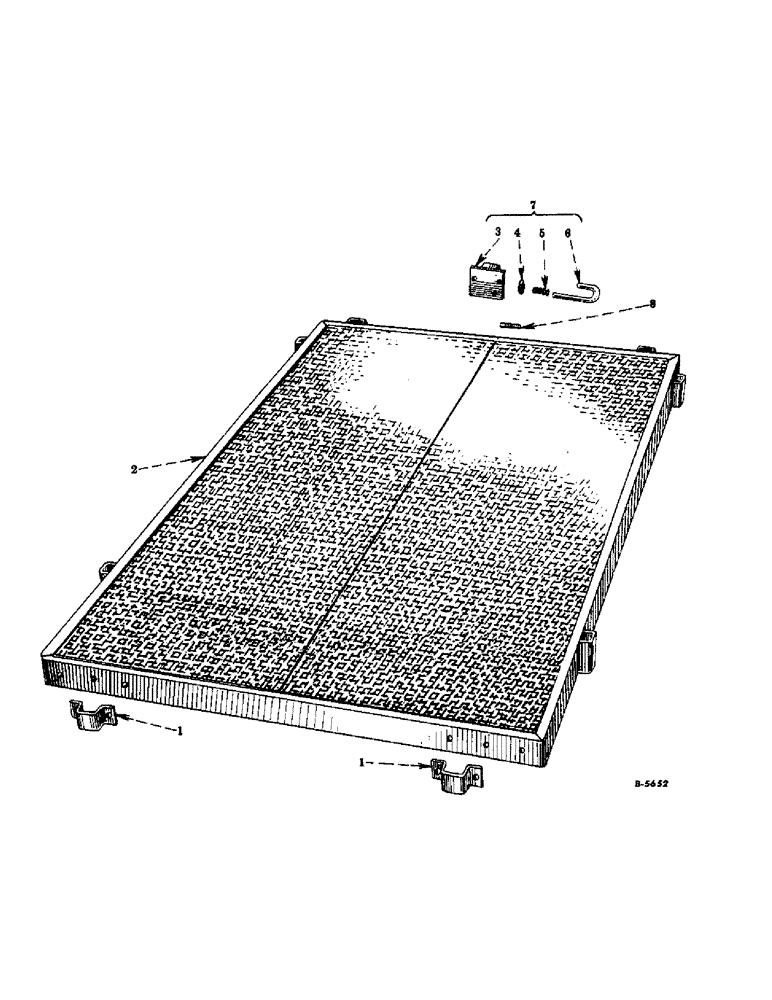

Запчасти Case IH VARIOUS (B-021) - PLATFORM, NO. 8A ONLY, 1950 TO 1956

1

453871R1

POCKET, rear stake

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13NC x 2 hex-hd

4шт.

220073

NUT, 1/2-13NC hex.

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

453910R91

PLATFORM AND FRAME

1шт.

3

453872R91

BRACKET, locking latch

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13NC x 1-1/4 hex-hd

3шт.

220073

NUT, 1/2-13NC hex.

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 ID x 1-5/16 OD x 13 ga plain

1шт.

5

453291R1

SPRING, latch pin

1шт.

6

453290R1

PIN, locking

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 ID x 1-5/16 OD x 13 ga plain

1шт.

7

453873

BRACKET AND PIN ASSY, latch

1шт.

8

453293R1

PAD, bumper

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

220069

FITTING

NUT, 1/4-20NC hex.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
