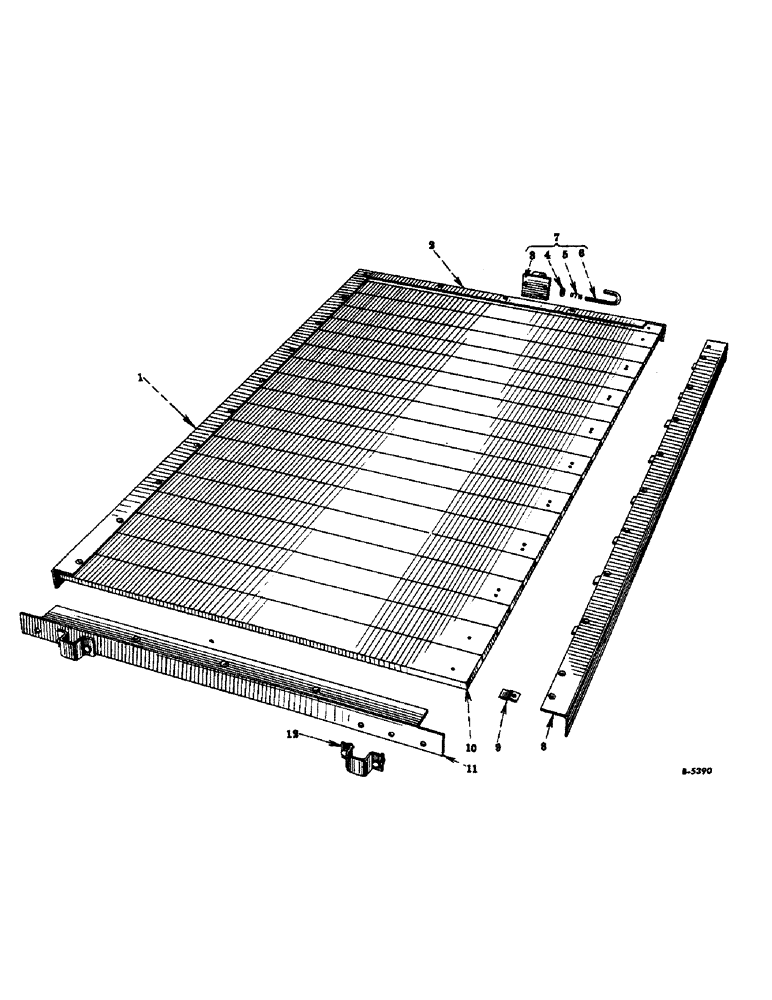

Запчасти Case IH VARIOUS (B-019) - PLATFORM, NO. 8 ONLY, 1950

1

453869R1

STRIP, left platform board

1шт.

12156R1

BOLT, 3/8-16NC x 2 crg

10шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16NC x 1 hex-hd

6шт.

220071

NUT, 3/8-16NC hex.

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

2

453867R1

STRIP, front platfrom board

1шт.

12156R1

BOLT, 3/8-16NC x 2 crg

5шт.

220071

NUT, 3/8-16NC hex.

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

3

453872R91

BRACKET, latch locking

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13NC x 1-1/4 hex-hd

3шт.

220073

NUT, 1/2-13NC hex.

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

495-11053

WASHER,1/2", SAE

17/32 ID x 1-1/16 ODx 13 ga plaib

1шт.

4

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 ID x 1-5/16 OD x 13 ga plain

1шт.

5

453291R1

SPRING, latch pin

1шт.

6

453290R1

PIN, locking

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 ID x 1-5/16 OD x 13 ga plain

1шт.

7

453873R91

BRACKET AND PIN ASSY, latch

1шт.

8

453870R1

STRIP, right platform board

1шт.

12156R1

BOLT, 3/8-16NC x 2 crg

11шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16NC x 1 hex-hd

6шт.

220071

NUT, 3/8-16NC hex.

17шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

17шт.

9

453874R1

CLIP, platform board

21шт.

10

453875R1

BOARD, platform

19шт.

11

453868R1

STRIP, rear platform board

1шт.

12156R1

BOLT, 3/8-16NC x 2 crg

5шт.

220071

NUT, 3/8-16NC hex.

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

12

453871

POCKET, rear stake

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13NC x 2 hex-hd

4шт.

220073

NUT, 1/2-13NC hex.

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
