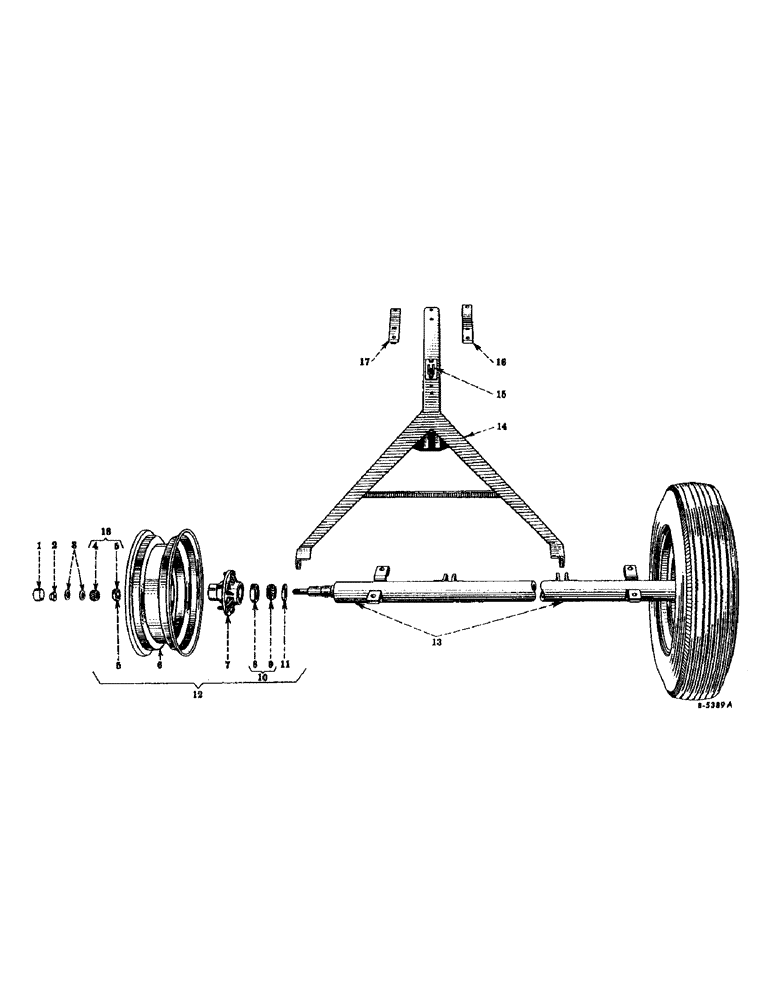

Запчасти Case IH VARIOUS (B-017) - WHEELS, AXLE AND HITCH FRAME, NO. 8 USED 1950, NO. 8A USED 1950 TO 1956

1

453283R1

CAP, hub

2шт.

2

102651

SLOTTED NUT

NUT, 3/4-16NF slotted hex.

2шт.

3

453284R1

WASHER, axle, between bearing and nut

2шт.

4

M32950

BEARING, ROLLER,0.75" ID x 1.938" OD x 0.848"

CONE, outer wheel bearing

2шт.

5

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

CUP, outer wheel bearing

2шт.

6

453767R91

DISK AND RIM, wheel, 5 holes

2шт.

7

453276R91

HUB W/BEARING AND SEAL ASSY, wheel, Composed of:

2шт.

453278R91

BEARING

inner

1шт.

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

CUP

1шт.

453277R1

HUB (NSS)

1шт.

453280R91

SEAL

1шт.

453281R11

BOLT, 1/2-20NF x 1-1/2 wheel

5шт.

453282R1

NUT, 1/2-20NF

5шт.

7

453277R11

HUB W/CUPS ASSY, wheel, For service only, Composed of:

1шт.

453281R11

BOLT

5шт.

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, inner

1шт.

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

CUP, outer

1шт.

453277R1

HUB (NSS)

1шт.

453281R11

BOLT, 1/2-20NF x 1-1/2 wheel, For service only

1шт.

453282R1

NUT, 1/2-20NF, Part of 453277R11

1шт.

8

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, inner wheel bearing

2шт.

9

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

CONE, inner wheel bearing

2шт.

10

453278R91

BEARING

ASSY, inner wheel

2шт.

11

453280R91

SEAL

wheel hub dust

2шт.

12

453865R91

HUB AND DISK ASSY, wheel

2шт.

13

453864R92

AXLE, wheel

1шт.

453301R11

BOLT W/HEX NUT 220085 AND LOCK WAHSER 121574, hex-hd

4шт.

102651

SLOTTED NUT

NUT, 3/4-16NF hex. slotted

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

14

453860R93

FRAME, hitch

1шт.

453294R1

PIN, 3/4 x 2 dld rd-hd hitch frame connecting

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

495-11081

WASHER,3/4", SAE

13/16 ID x 1-1/2 OD x 10 ga plain

2шт.

15

453863R91

PLATE, latch lug locking

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16NC x 1 hex-hd

2шт.

105606

NUT

3/8-16NC square

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

453862R1

STRAP, offset hitch

1шт.

180287

BOLT, 5/8-11NC x 2-1/2 hex-hd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

453861R91

STRAP W/NUTS, straight hitch

1шт.

18

M32949

BEARING

ASSY, outer wheel

2шт.
