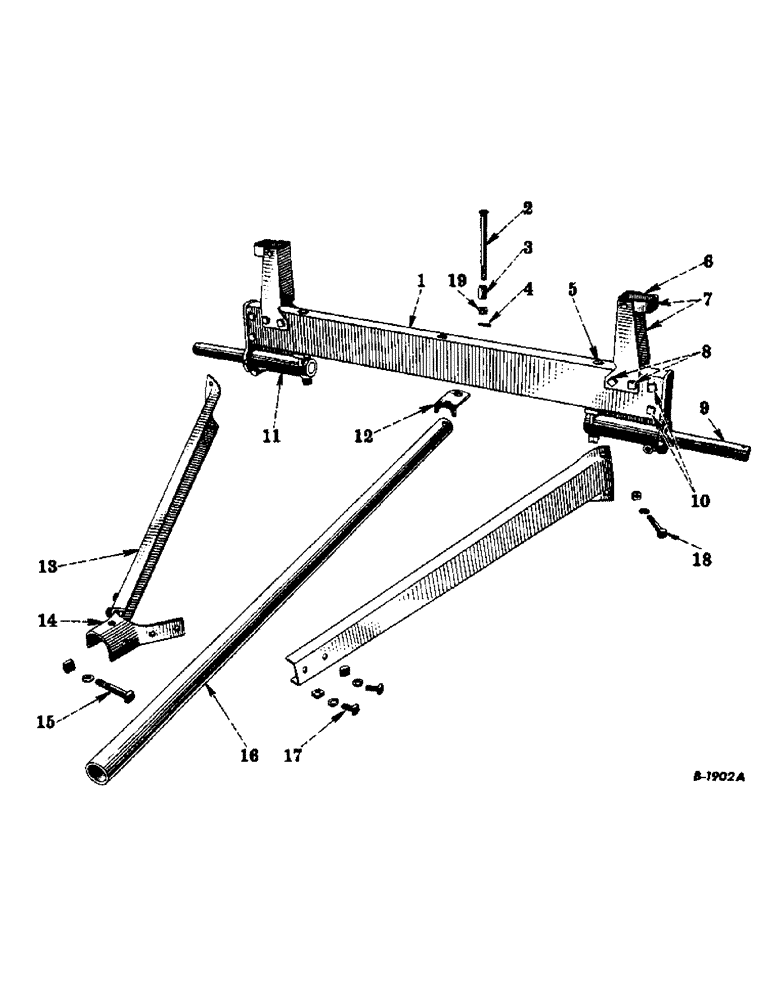

Запчасти Case IH VARIOUS (A-07) - AXLE, BOLSTER, CHANNEL, DRAFT BRACKET AND REACH PIPE, REAR END
№
Артикул
Название
Примечание
Количество
1
16707WA
AXLE
ASSY, rear, Composed of
1шт.
16668W
AXLE
2шт.
Q3846
BOLT
2шт.
16663WA
CHANNEL
1шт.
685W
HOLDER
2шт.
1
16663WA
CHANNEL, upper rear axle
1шт.
13433R11
BOLT W/NUT, 1/2-13NC x 3-1/4 mach
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
2
Q3847
BOLT, 5/8-11NC x 8 no. 3 plow, rear reach bolt
1шт.
25-1210
SLOTTED NUT,5/8"-11, G5
NUT, 5/8-11NC slt-hex
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
3
16671W
SPACER, rear reach
1шт.
4
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
5
Q3846
BOLT, 5/8-11NC x 9 dld, no. 3 plow, rear stub axle
2шт.
25-1210
SLOTTED NUT,5/8"-11, G5
NUT, 5/8-11NC slt-hex
2шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
6
16699W
RING, stake
2шт.
104196
RIVET, 3/8 x 7/8 x 90 deg csk-hd
4шт.
7
16696W
STAKE W/RING, 16699W
2шт.
8
13452R11
BOLT W/NUT, 1/2-13NC x 3-1/2 mach
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
9
16668W
AXLE, rear stub
2шт.
10
14433R11
BOLT W/NUT, 1/2-13NC x 3-1/4 mach
2шт.
11
685W
HOLDER, rear axle
2шт.
12
16672W
HITCH, rear axle
1шт.
13
16726W
HOUND, rear
2шт.
13433R11
BOLT W/NUT, 1/2-13NC x 3-1/4 mach
1шт.
13452R11
BOLT W/NUT, 1/2-13NC x 3-1/2 mach
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
14
16725W
BRACE, rear reach
1шт.
15
179896
BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5
1шт.
13256R11
BOLT W/NUT, 7/16-14NC x 1 mach
2шт.
105608
NUT
1/2-13NC sq
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
16
16721W
PIPE, rear reach
1шт.
17
13256R11
BOLT W/NUT, 7/16-14NC x 1 mach
2шт.
18
13452R11
BOLT W/NUT, 1/2-13NC x 3-1/2 mach
1шт.
19
25-1210
SLOTTED NUT,5/8"-11, G5
NUT, 5/8-11NC slt-hex
1шт.
Выбрано товаров: 41
