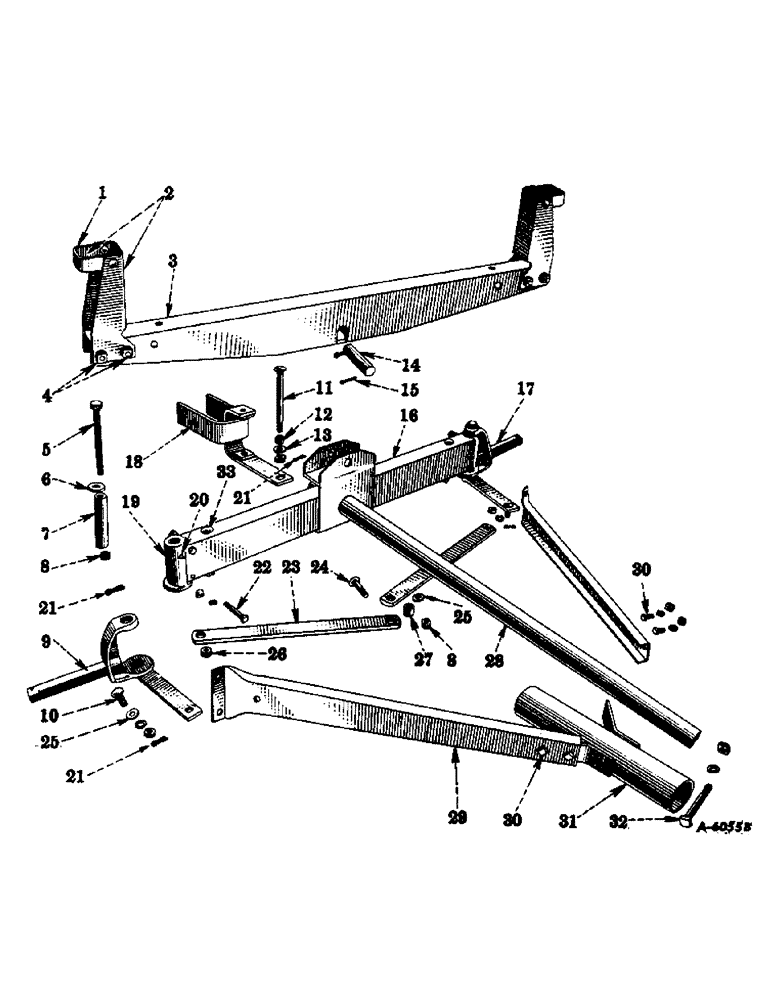

Запчасти Case IH VARIOUS (A-05) - AXLE, BOLSTER, CHANNEL, DRAFT BRACKET AND REACH PIPE, FRONT END

1

16699W

RING, stake

2шт.

104196

RIVET, 3/8 x 7/8 x 90 deg csk-hd

4шт.

2

16696W

STAKE W/RING, 16699W

2шт.

13452R11

BOLT W/NUT, 1/2-13NC x 3-1/2 mach

4шт.

1033323

HUB

WASHER, 1/2 lock

4шт.

3

16692WA

BOLSTER, floating

1шт.

4

13452R11

BOLT W/NUT, 1/2-13NC x 3-1/2 mach

4шт.

5

Q5032

BOLT, 5/8-11NC x 8 hex-hd dld, spindle yoke spacer

2шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

6

16659W

WASHER, front spindle spacer, Serial Range: 1940-1944

2шт.

6

16744W

WASHER

front spindle spacer, Serial Range: 1944-1954

2шт.

7

16658WA

SPACER, front spindle yoke

2шт.

8

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

2шт.

9

16655WB

SPINDLE, left front

1шт.

10

Q3845

BOLT, 5/8-11NC dld crg, tie bar end bolt

2шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga, plain

2шт.

11

Q3842

BOLT, 3/4-10NC x 8-1/2 dld crg, draft bracket king pin

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10NC slot-hex

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

Q3698

WASHER

.755/.765 ID x 2 OD x 11 ga, plain

1шт.

12

16648W

BUSHING, steering yoke support

1шт.

13

Q3698

WASHER

.755/.765 ID x 2 OD x 11 ga, plain

1шт.

14

16695W

PIN, floating bolster, 1 x 4 in.

1шт.

15

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

16

16649WA

CHANNEL, front axle

1шт.

15314R11

BOLT W/NUT, 5/8-11NC x 5-3/4 crg

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

16706WA

AXLE

ASSY, front, includes ref. nos. 5 through 27 and ref. no. 33

1шт.

17

16654WB

SPINDLE, right front

1шт.

18

16643WC

BRACKET, draft

1шт.

19

683WA

BEARING, front spindle

2шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lub

2шт.

21

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

6шт.

22

13433R11

BOLT W/NUT, 1/2-13NC x 3-1/4 mach

4шт.

23

16660W

BAR, steering tie

2шт.

24

Q3844

BOLT, 5/8-11NC x 2-3/8 dld crg, tie bar center bolt

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

Q1540

WASHER

21/32 x 1-3/4 x 12 ga, plain

1шт.

25

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga, plain

2шт.

26

16662W

BUSHING, tie bar, short

2шт.

27

16661W

BUSHING, tie bar, long

1шт.

28

16720W

PIPE, reach, front

1шт.

29

16675WA

HOUND, front

2шт.

30

13256R11

BOLT W/NUT, 7/16-14NC x 1 mach

4шт.

13433R11

BOLT W/NUT, 1/2-13NC x 3-1/4 mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

31

16722WA

BRACE, reach, front

1шт.

32

13489R1

BOLT, 1/2-13NC x 4 mach

1шт.

114774

NUT, 1/2-13NC hex

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

33

15314R11

BOLT W/NUT, 5/8-11NC x 5-3/4 crg

2шт.
