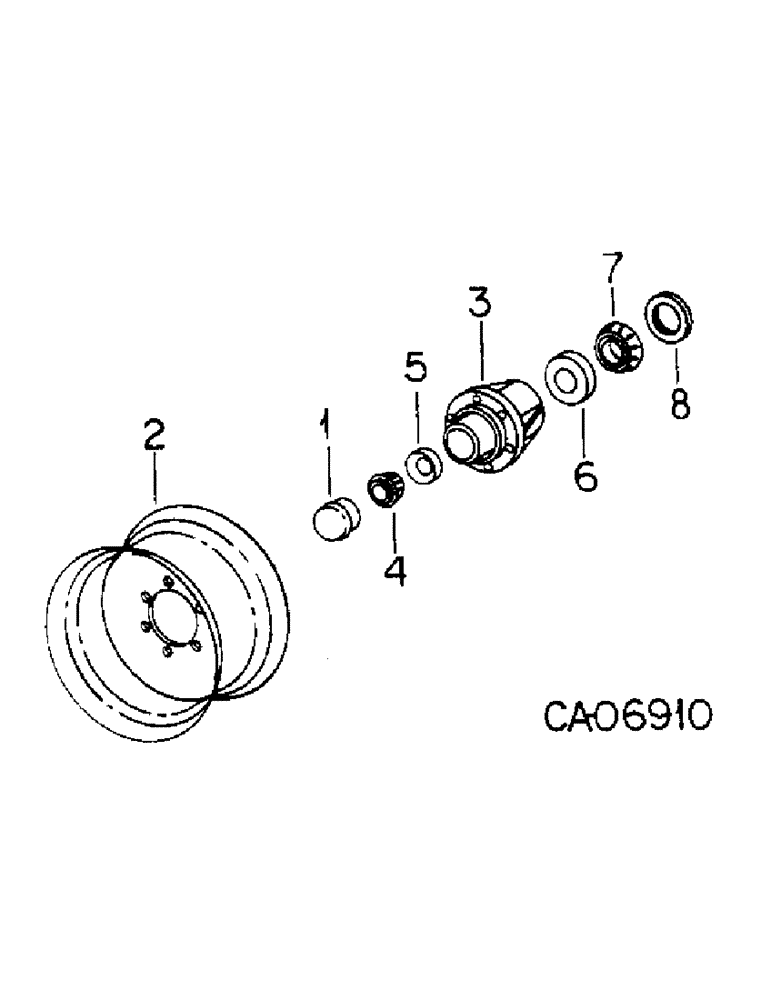

Запчасти Case IH VARIOUS (D-52) - BEARINGS, HUBS AND WHEELS

1

518842R1

CAP

wheel hub

6шт.

2

486101R2

RIM

WHEEL, 15 X 8 DC, 6 bolt, Note A, Recommend tire size 10.00-15 8 ply

6шт.

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel, 6 per wheel, Replaces 77203C1

1шт.

453770R1

WHEEL NUT

wheel bolt, 6 per wheel, Replaces 77204C1

1шт.

2

77190C1

WHEEL, 15 X 10 DC, 6 bolt, Note B, Recommend tire size 11L-15 10 ply

6шт.

392547R1

BOLT

wheel, 6 per wheel

1шт.

3

77201C91

HUB

W/BEARING CUPS, wheel, Note A, Includes ref. nos. 5 and 6

6шт.

3

77211C91

HUB

W/BEARING CUPS, wheel, Note B, Includes ref. nos. 5 and 6

6шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel outer cone

6шт.

5

651817R1

BEARING CUP

BEARING, wheel outer cup

6шт.

6

478793R1

BEARING CUP

BEARING, wheel inner cup, Note A

6шт.

6

663558R1

BEARING CUP

BEARING, wheel inner cup, Note B

6шт.

7

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

wheel inner cone, Note A

6шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel inner cone, Note B

6шт.

8

474018R91

OIL SEAL

wheel bearing grease, Note A

6шт.

8

208443C1

OIL SEAL

wheel bearing grease, Note B

6шт.
