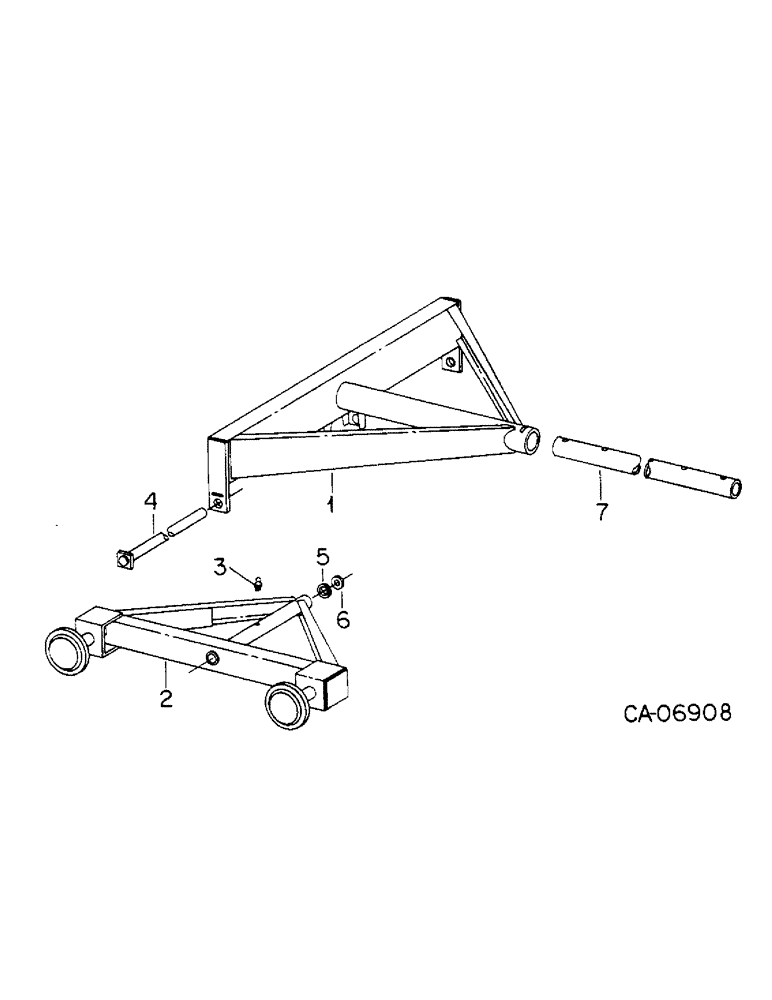

Запчасти Case IH VARIOUS (D-51) - REAR AXLE AND CONNECTIONS

1

77175C1

FRAME, rear wheel, no. 375

1шт.

1

77215C1

FRAME, rear wheel, no. 385

1шт.

2

77189C1

AXLE, rear wheel, no. 375

2шт.

2

77218C1

AXLE, rear wheel, no. 385

2шт.

Q296

WASHER

.781 x 1.375 x .042 pln

6шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

4шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self-tapping lub

2шт.

4

77191C1

ROD, rear wheel axle, no. 375

2шт.

4

77219C1

ROD, rear wheel axle, no. 385

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

77256C1

BUSHING, rear wheel axle rod, no. 375

2шт.

5

77222C1

BUSHING, rear wheel axle rod, no. 385

2шт.

6

25742R1

WASHER

rear wheel axle rod cap, no. 375

2шт.

6

77232C1

WASHER, rear wheel axle rod cap, no. 385

2шт.

7

77186C1

TUBE, rear frame reach pole

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
