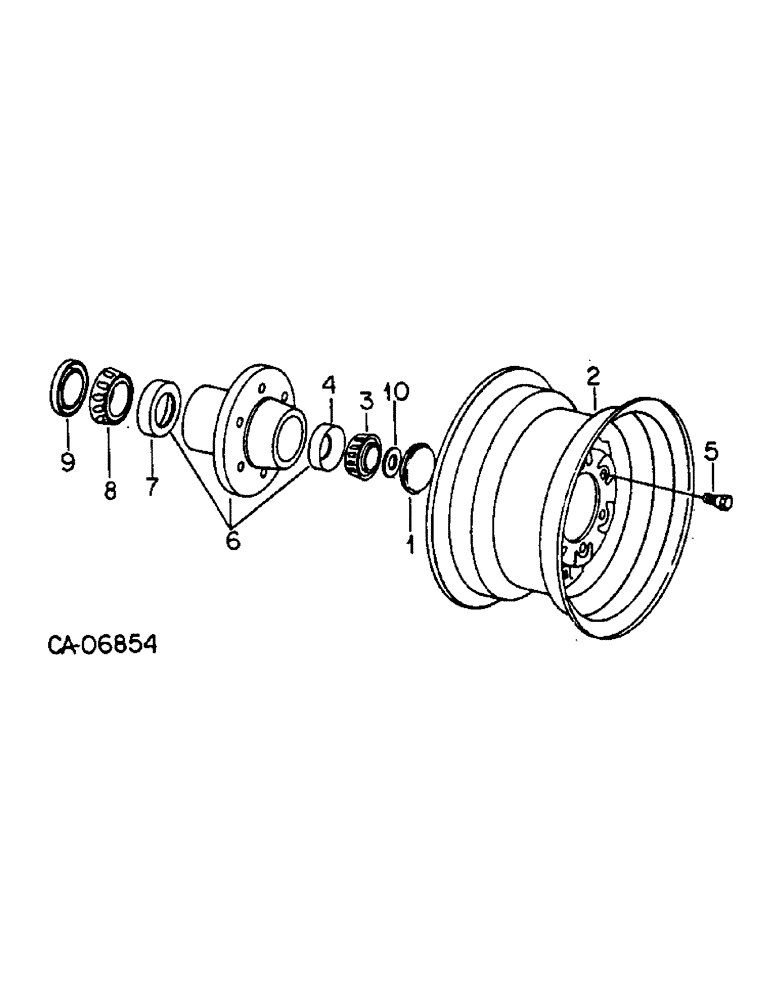

Запчасти Case IH VARIOUS (D-45) - WHEEL AND HUB ASSY

1

614406R1

CAP

hub

4шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

4шт.

2

145754C1

WHEEL, 15 X 10 lb, Recommend 11L-15 10 ply rated tire

1шт.

2

145755C1

WHEEL, 16 X 10 lb, Recommend 12.5L-16 12 ply rated tire

1шт.

2

145783C1

WHEEL, W11C-16.1, Recommend 13.5 X 16.1 8 ply rated tire

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, outer cone

4шт.

4

651817R1

BEARING CUP

BEARING, outer cup

4шт.

5

56047C1

BOLT,9/16" - 18 x 1 11/16", Class 3

wheel

24шт.

6

145768C91

HUB

w/brgs

4шт.

7

663558R1

BEARING CUP

BEARING, inner cup

4шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING, inner cone

4шт.

9

145769C91

OIL SEAL

oil

4шт.

10

55936C1

WASHER

spindle

4шт.
